Indoor air handler problem

Air handler not working

Name the failure before buying parts. Check thermostat Fan On, power once, filter condition, pan water, and the visible float switch before choosing a repair path. Watch for what still works: airflow, display, water clue, or no response.

A good clue is what still works. If Fan On moves air, check the call next; if water is in the pan, clear the drain clue first.

A broad air-handler failure gets expensive when you skip the sorting step and start buying internal parts.

Don’t start with: If Fan On is dead, the breaker trips, or water returns, call service before buying blower motors, boards, relays, transformers, or sealed-system parts.

No air from every register?Try Fan On once and check filter, power, pan water, and float switch clues.

Some air but weak or uneven?Start with filter, returns, registers, and visible restrictions before blower parts.

Do this first

Use Fan On once to see whether the indoor blower responds.
Check the air-handler switch or breaker once; do not keep resetting it.
Replace a dirty, damp, collapsed, missing, or wrong-size filter.
Look for pan water, a raised float switch, ice, hot smell, sharp buzzing, or scraping.
Replace thermostat batteries only if the thermostat uses them and the display is weak or blank.
Call service for no response, repeated trips, hot smell, sharp buzzing, or water near controls.

Last reviewed: 2026-06-28

Fast symptom sorter

Fan On works?

The blower can run; the fault may be in the heat or cooling call.

Fan On does nothing?

Check power and water clues once, then stop before internal controls.

Filter dirty or wrong?

Install the exact supported filter and retest once.

Pan water or float raised?

Clear condensate before judging the switch.

Breaker trips or hot smell?

Keep system off and call service.

Sort the failure before buying parts

The first safe checks separate no response, no airflow, restricted airflow, and condensate safety.

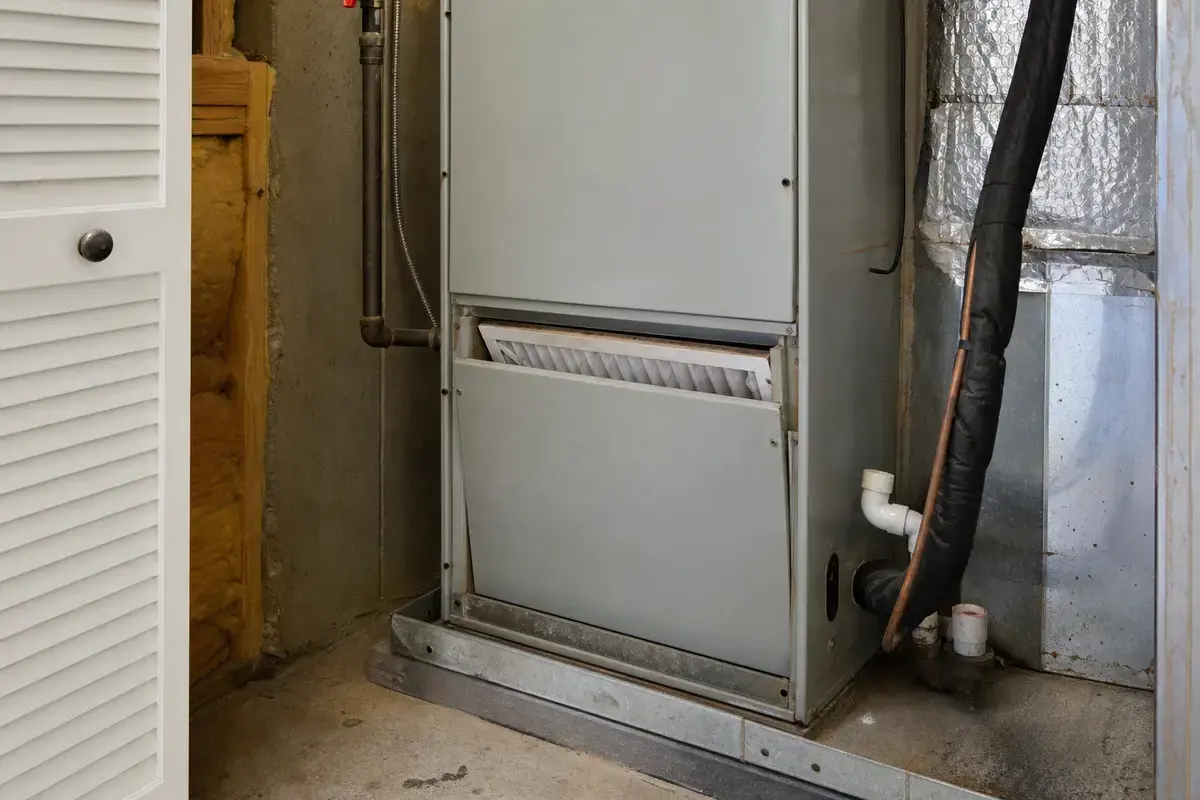

Air handler checked when not working — Start with thermostat command, cabinet area, filter slot, and drain clues before assuming an internal failure.

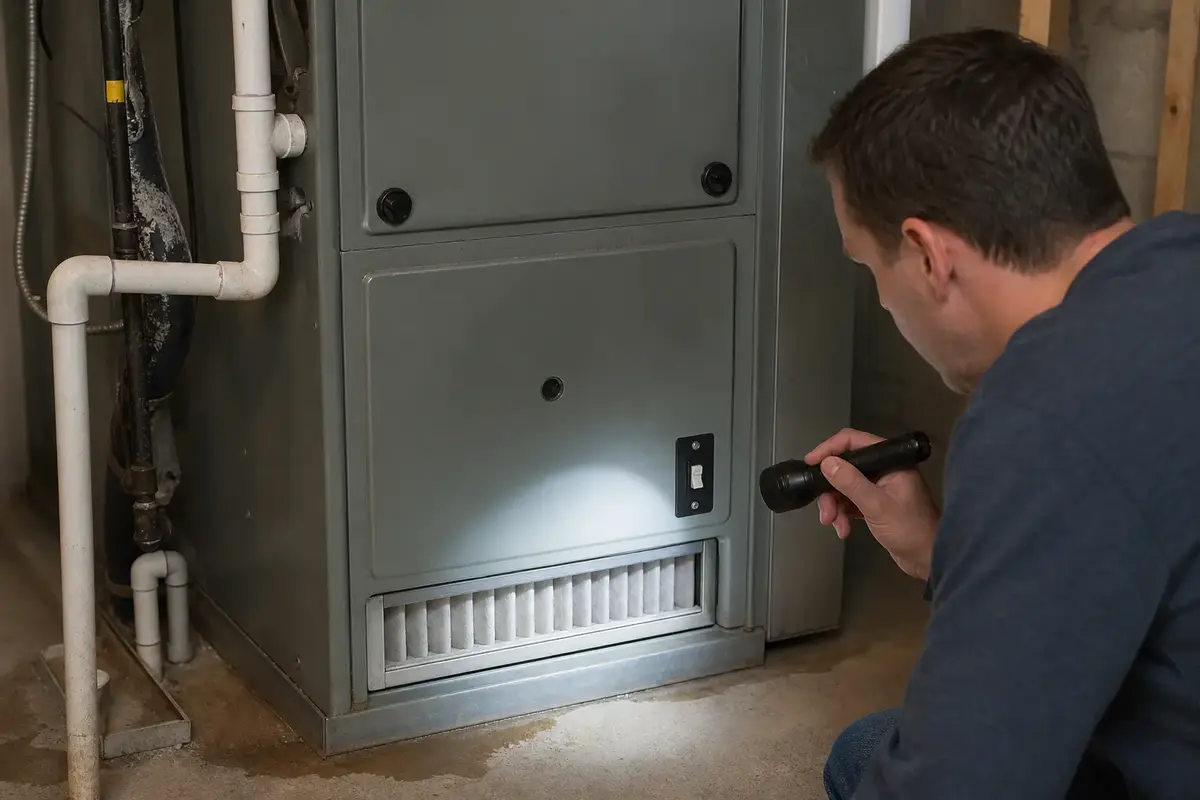

Air handler cabinet checked for not working symptom — A safe outside-cabinet check keeps the diagnosis tied to visible evidence.

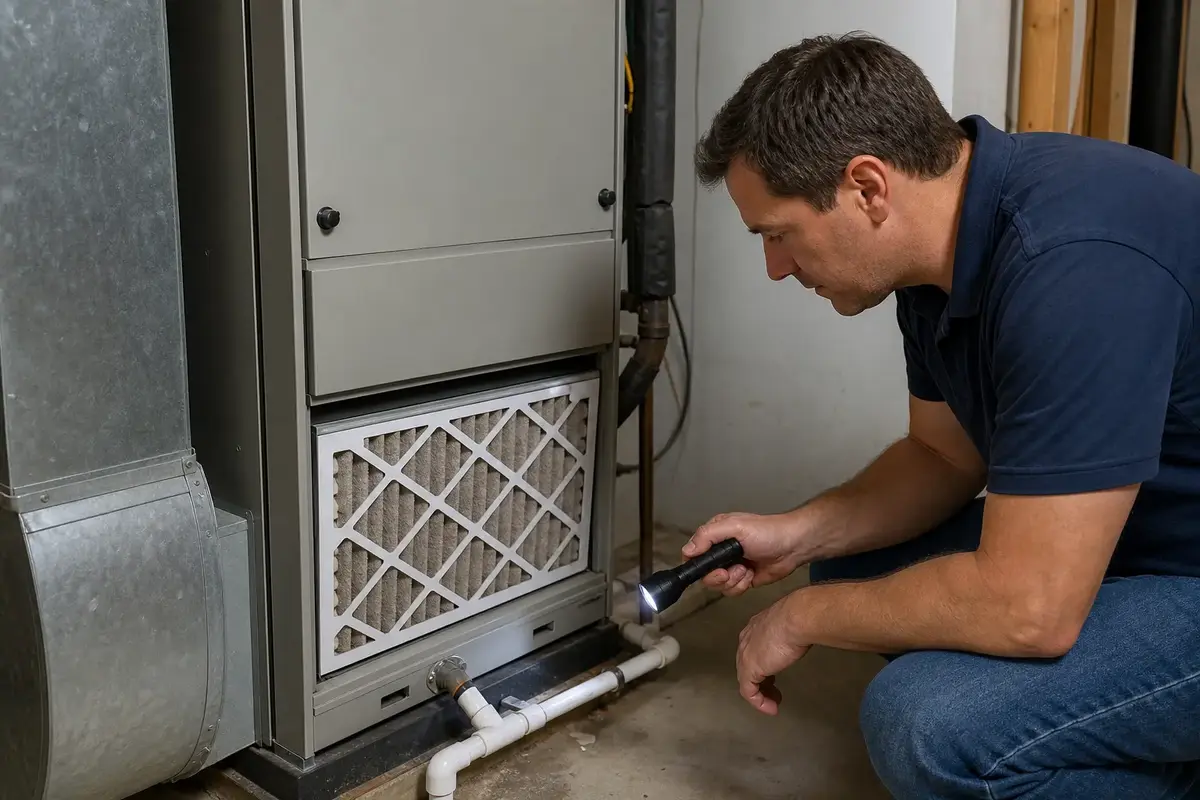

Air handler filter and drain checked when system is not working — Filter restriction and condensate water are common visible clues that must be ruled out first.

Before you buy parts or supplies

Buy only after the broad symptom is narrowed to one visible clue. A filter is reasonable when it is dirty, damp, collapsed, missing, or wrong size. A float switch is reasonable only when the pan and drain are dry but the visible switch is cracked, stuck, or will not reset. Match the exact filter size, switch mounting style, wiring, and diagnosis before ordering anything.

Jump to: System Split Table · Tools You May Need · Replacement Parts

What this symptom means

Start by naming the failure instead of treating not-working as one diagnosis.

Fan On is the fastest way to separate a blower that can run from one that does not respond.
Filter restriction can create weak airflow, ice, shutdown, and poor comfort.
Pan water can hold a safety switch open on many systems.
Repeated breaker trips, hot smell, sharp buzzing, or scraping are service stop signs.

What not to do first

Avoid buying internal parts until the visible clues support it.

If Fan On is dead, the breaker trips, or water returns, call service before buying blower motors, boards, relays, transformers, or sealed-system parts.
If the page title is the only evidence, keep hidden electrical, blower, duct, refrigerant, heating, and control parts out of the cart.
Do not ignore water, ice, breaker trips, hot smells, smoke, gas odor, scraping, sharp buzzing, alarms, or equipment that will not respond to the thermostat.
Do not use any part unless the size, style, wiring, and diagnosis match your installed system.

Fast sorting table

Use this table after one controlled check and any normal startup delay.

Clue	Most likely cause	Next move
Fan On works	Blower can move air	Check the heat or cooling call next.
Fan On does nothing	Power, safety, blower, or control issue	Check visible clues and stop before internal work.
Dirty or wrong filter	Airflow restriction	Install exact supported filter.
Pan water or raised float	Condensate safety clue	Clear water source first.
Breaker trips, hot smell, sharp buzz	Electrical or motor risk	Keep system off and call service.

Checks that actually matter

These checks keep the diagnosis tied to what you can see or safely test.

Write down whether the failure is no response, no airflow, weak airflow, water, ice, noise, or poor temperature.
Use Fan On once and note the result.
Inspect filter size, condition, and airflow arrow.
Look for pan water, visible float-switch position, and ice.
Stop if the next step would require blower, control, wiring, or sealed-system work.

When a part is likely

Keep the cart narrow and buy only when the evidence points to that exact item.

Filter evidence: dirty, damp, collapsed, missing, or wrong-size filter with weak airflow, ice, or restriction clues.
Float-switch evidence: the pan and drain are dry, but the visible switch is cracked, stuck, or will not reset.

Tools You May Need

These support safe visible checks, cleanup, and documentation.

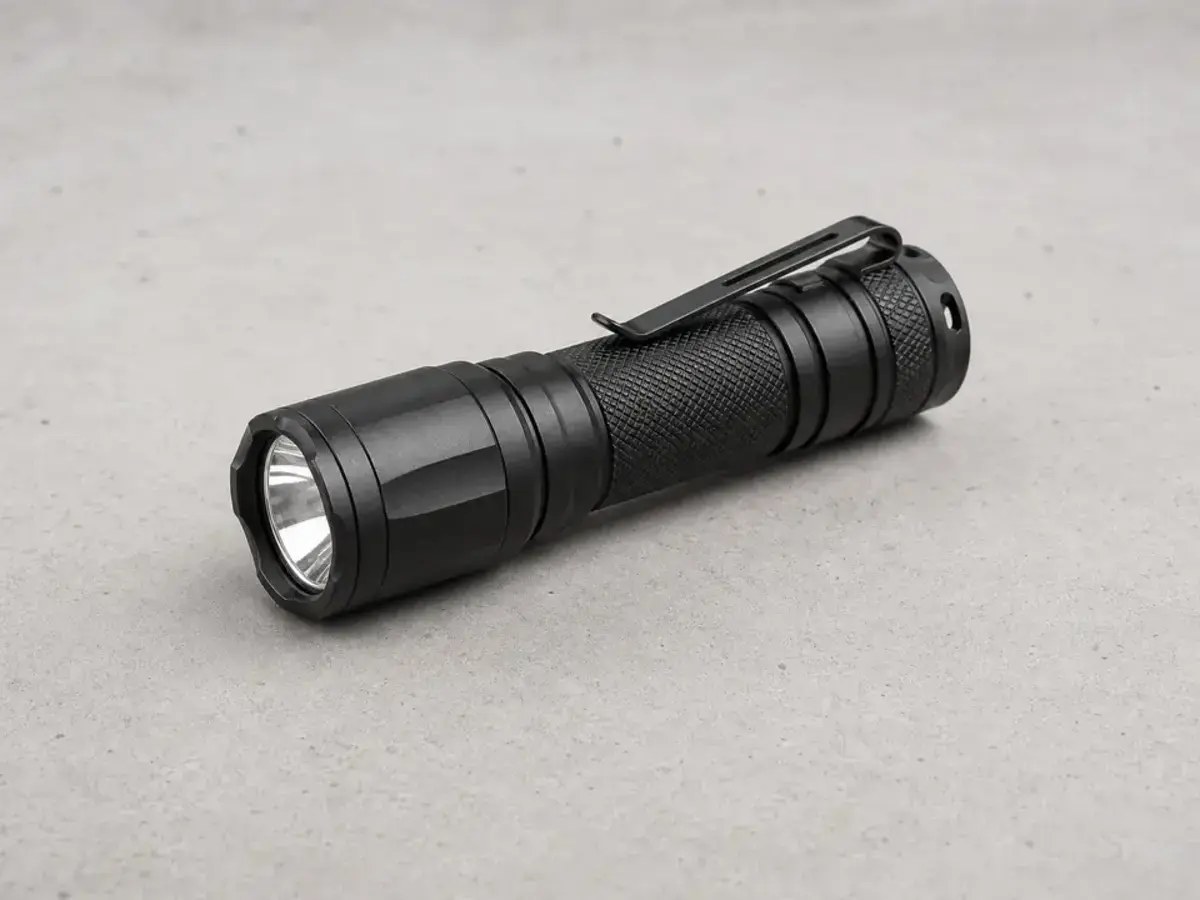

Inspection flashlight

Helps when: Use it to inspect the filter slot, pan water, float switch, service switch area, and visible cabinet clues.

Skip it when: Skip checks that require opening blower electrical compartments, reaching into the cabinet, or working near water and controls.

Compare inspection flashlights on Amazon

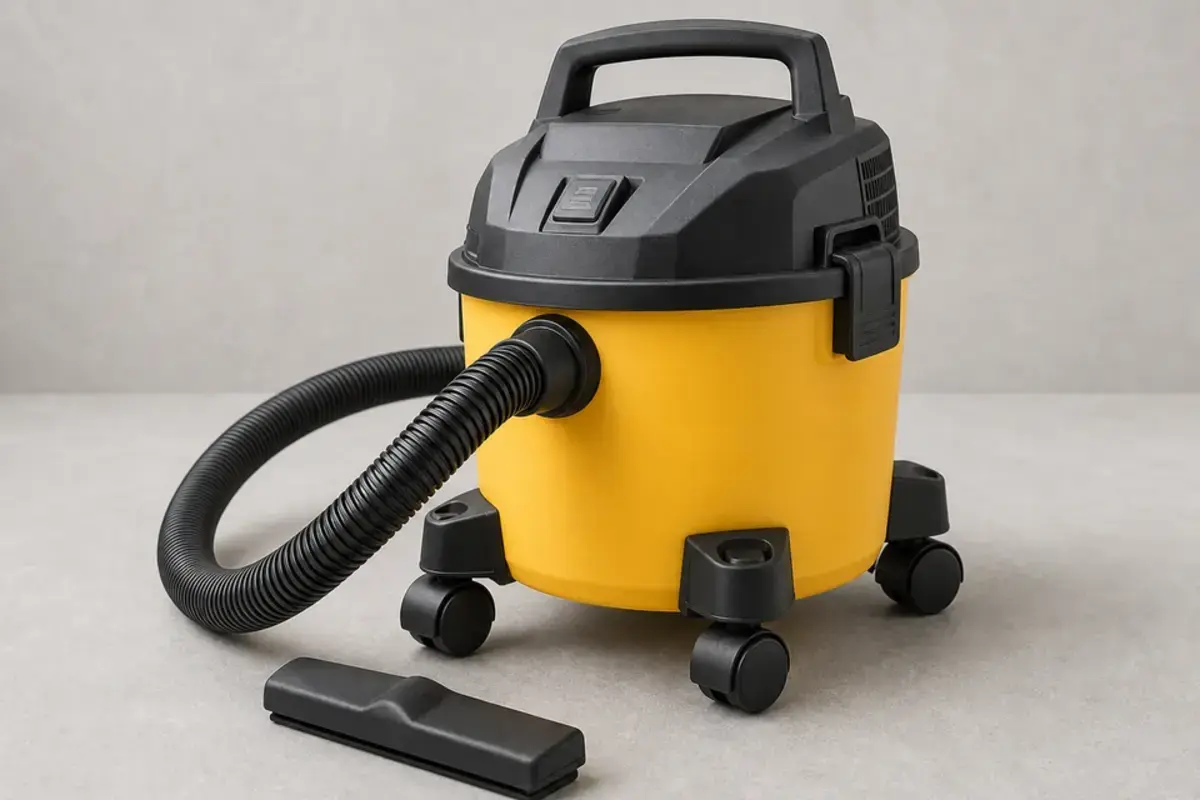

Wet-dry vacuum

Helps when: Use it only at a known condensate outlet when water may be holding a safety switch open.

Skip it when: Skip it when the drain outlet is hidden, water is near electrical controls, or you cannot identify the condensate line.

Compare wet-dry vacuums on Amazon

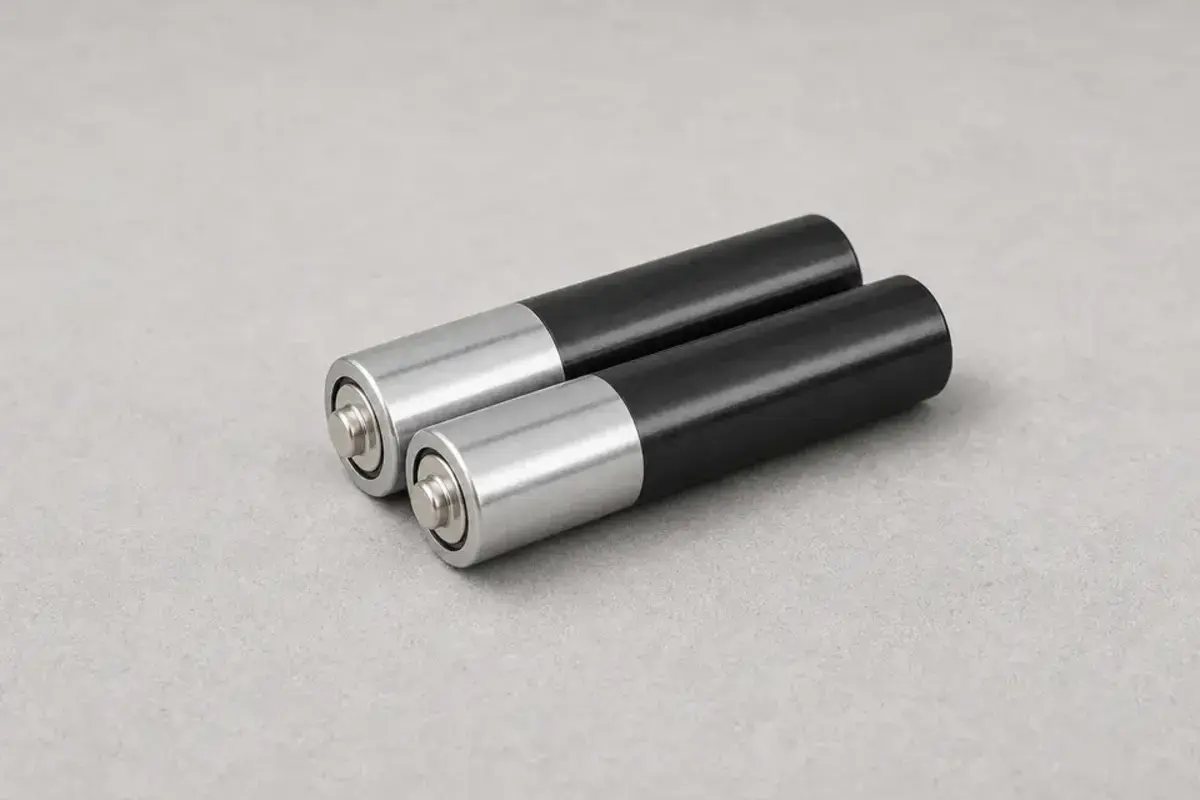

Thermostat batteries

Helps when: Use them only when the thermostat display is weak or blank and the thermostat uses replaceable batteries.

Skip it when: Skip batteries when the thermostat is hard-wired with no replaceable battery compartment or the air handler has no power.

Compare thermostat batteries on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

These are the only buy-first parts that fit the visible homeowner clues.

Air handler correct-size filter: Use this when the installed filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.
Air handler condensate float switch: Use this after the pan is dry and the visible switch is broken, stuck, or will not reset.

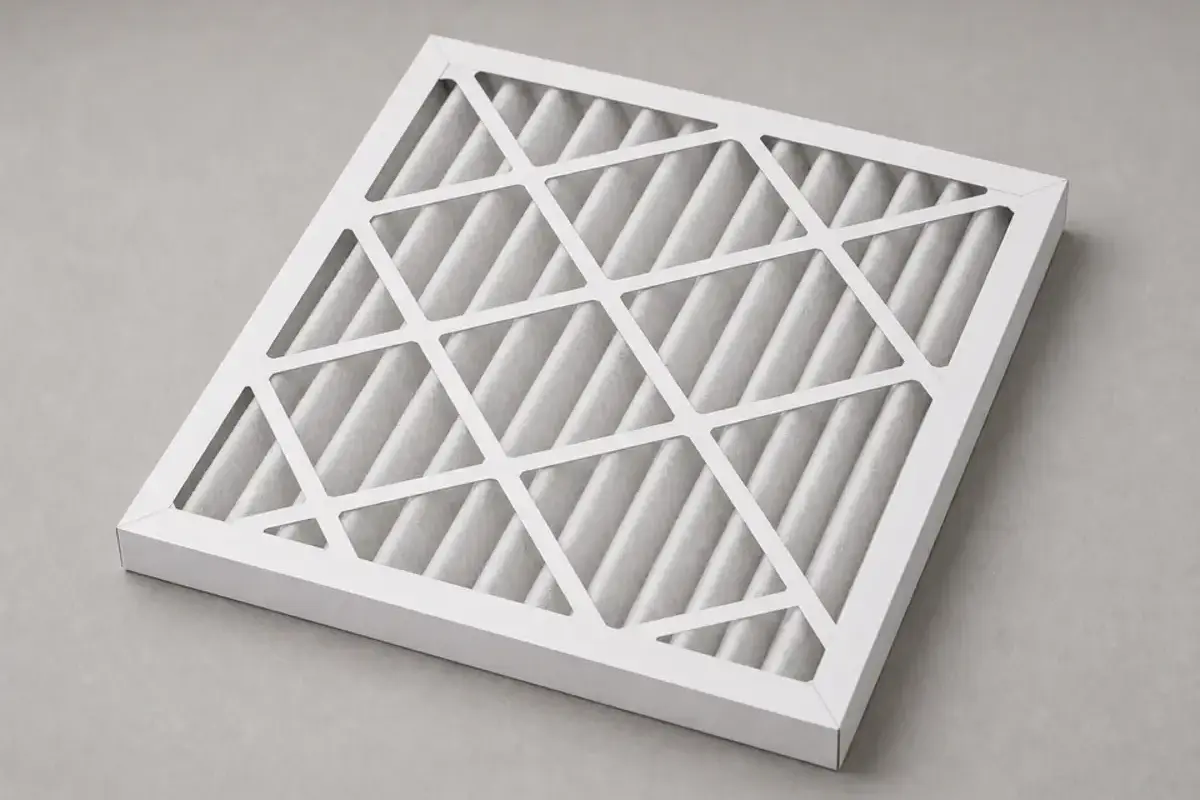

Correct-size air handler filter for not-working airflow checks

Air handler correct-size filter

Helps when: Replace it when the installed filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.

Skip it when: Skip filters that do not match the rack size, thickness, airflow arrow, and supported restriction range.

Compare air handler filters on Amazon

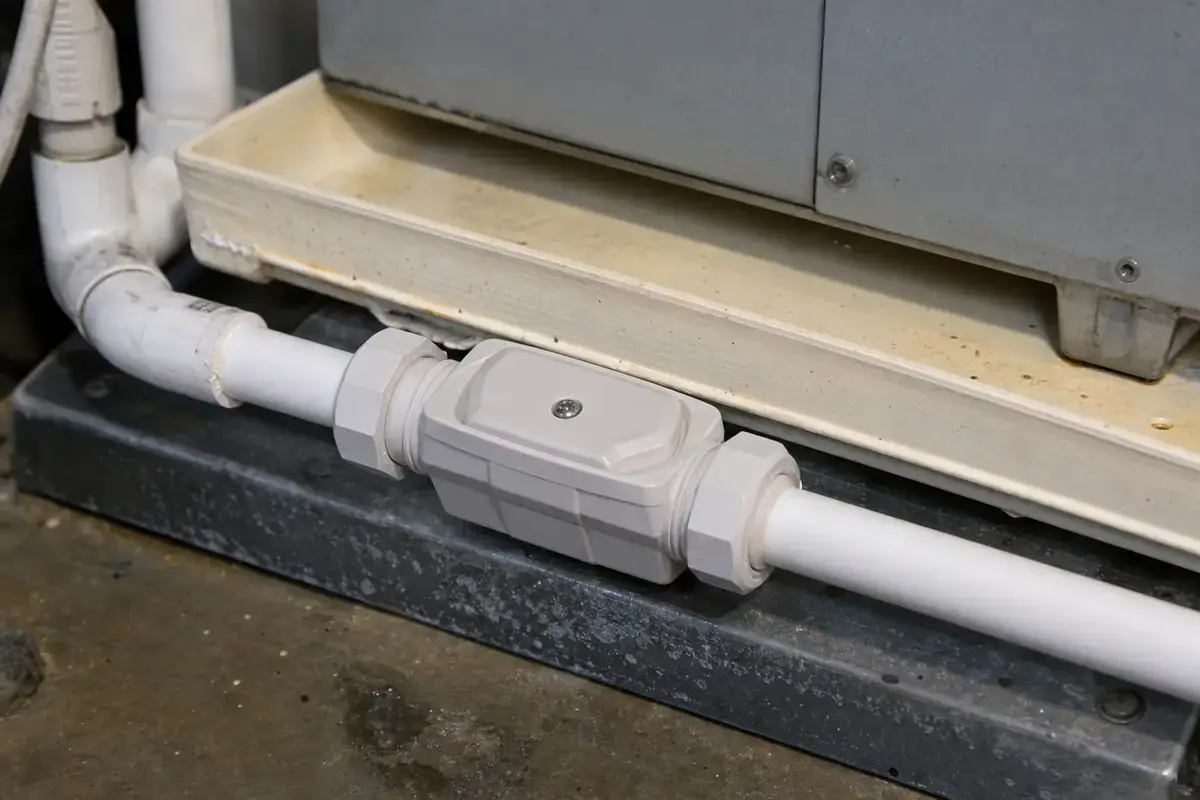

Air handler condensate float switch

Helps when: Consider one only after the pan is dry and the visible switch is broken, stuck, or will not reset.

Skip it when: Skip it when water is still lifting a working switch, the drain is not clear, or the mounting style does not match.

Compare air handler condensate float switches on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Why is my air handler not working?

Common clues include thermostat command, power, filter restriction, condensate safety, blower trouble, controls, or electrical faults.

What should I check first?

Try Fan On once, then inspect the filter, pan water, float switch, thermostat display, and breaker status.

Can a dirty filter make the air handler stop working?

It can restrict airflow, contribute to ice, and make operation look worse, so replace a dirty or wrong-size filter before deeper guesses.

Can a float switch shut it down?

Yes, on many systems pan water can interrupt operation. Clear the water source before replacing the switch.

Should I buy a blower motor?

No. Blower motors need tested diagnosis and exact model matching.

Should I replace the thermostat?

Only after it is confirmed as the command failure and the terminal compatibility is clear.

What can I buy safely?

A correct-size filter, thermostat batteries, or a confirmed matching float switch are reasonable only when the visible evidence fits.

When should I call service?

Call for no Fan On response, repeated breaker trips, hot smell, sharp buzzing, scraping, recurring pan water, or hidden controls.

How this guide was built

Repair Riot built this page around visible checks: thermostat command, airflow, moisture, odor, breaker clues, and stop points before hidden work.

U.S. Department of Energy air conditioner maintenance — supports filter, airflow, coil, and condensate-maintenance guidance
EPA Section 608 technician certification — supports leaving sealed refrigerant work to certified technicians
