Sweating air-handler cabinet

Air handler cabinet sweating

If the air handler cabinet is sweating, treat it as a humidity, airflow, or drain clue. Check the filter, return airflow, cabinet seams, drainage, and ice before buying parts.

Good clue: light moisture on cold metal points to humidity and insulation; heavy water near the base or pan points to drain, ice, or condensate trouble.

A sweating cabinet can be harmless surface condensation or the first sign of low airflow, ice, drain backup, or missing insulation.

Don’t start with: Do not seal random seams, replace controls, or ignore cabinet sweating that is dripping into finished space.

If the cabinet is dripping onto drywall, flooring, or a ceiling below,shut cooling off and protect the area before you keep testing.

If the filter is dirty or return airflow is choked down,fix that first because low airflow can make the cabinet and coil get too cold.

Do this first

Turn cooling off if water is dripping into finished spaces or near electrical controls.
Replace a dirty, damp, collapsed, or wrong-size filter.
Check for ice on the coil area or refrigerant line.
Dry the cabinet and watch where fresh moisture returns first.
Inspect the condensate pan and drain outlet if accessible.
Do not cover wet metal with tape or insulation until the cause is clear.

Last reviewed: 2026-06-28

Fast symptom sorter

Fine beads on cold metal?

Check room humidity, insulation gaps, and airflow before parts.

Water running from the base?

Check drain pan, condensate outlet, float switch, and thawing ice.

Filter dirty or airflow weak?

Restore airflow before judging cabinet sweat.

Ice visible?

Turn cooling off, thaw, replace filter if needed, and call if ice returns.

Moisture returns after drying?

Use the location to separate cabinet sweat from drain overflow.

Tell surface sweat from drain or ice water

Look for where the first wet spot returns: cabinet face, seam, base, pan, or drain line.

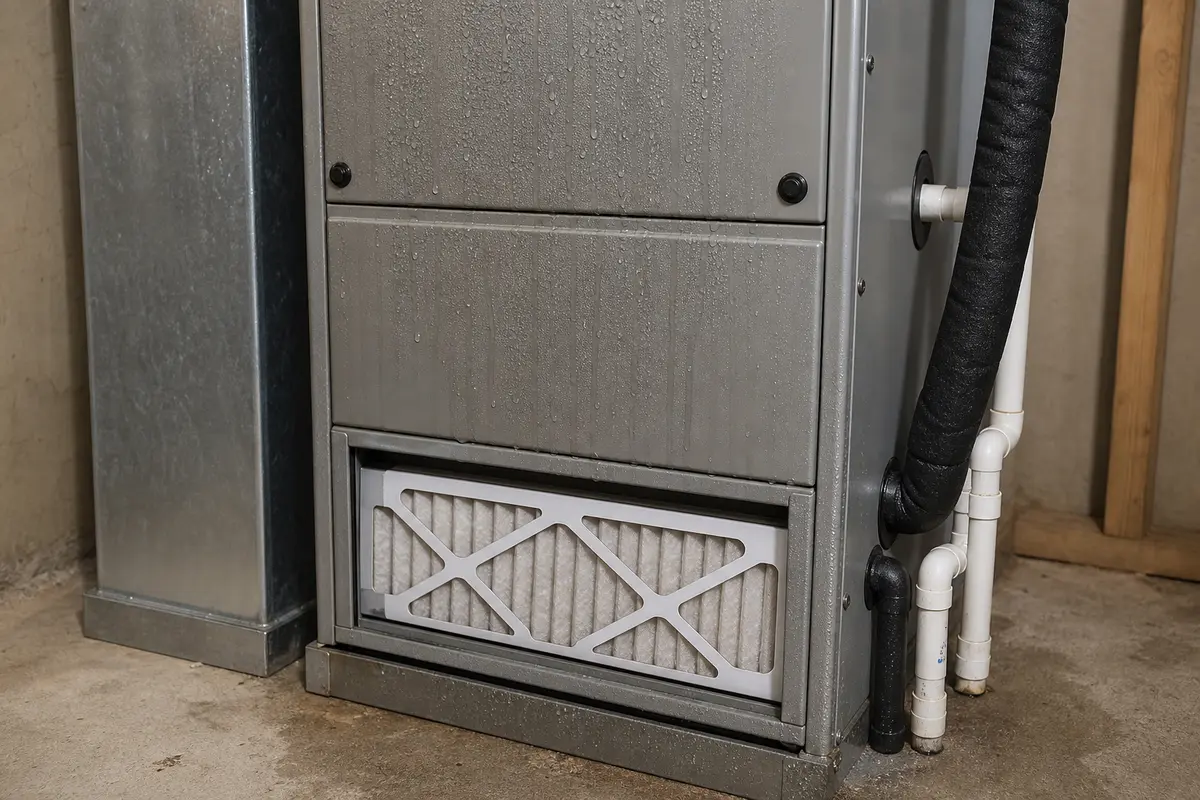

Air handler cabinet with visible sweating and filter slot clues — Moisture on the cabinet face often starts with cold metal, airflow restriction, or high humidity.

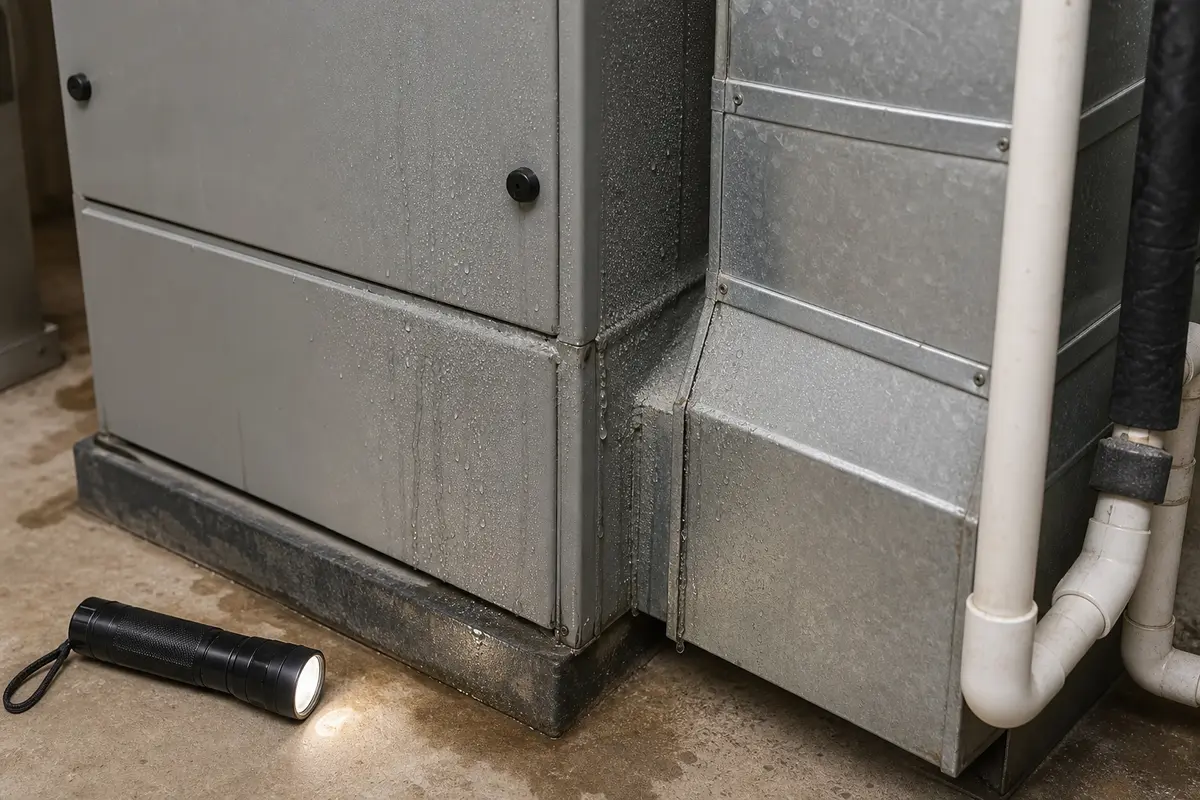

Close-up of condensation beads on an air handler cabinet seam — A wet seam helps separate surface condensation from a drain pan overflow.

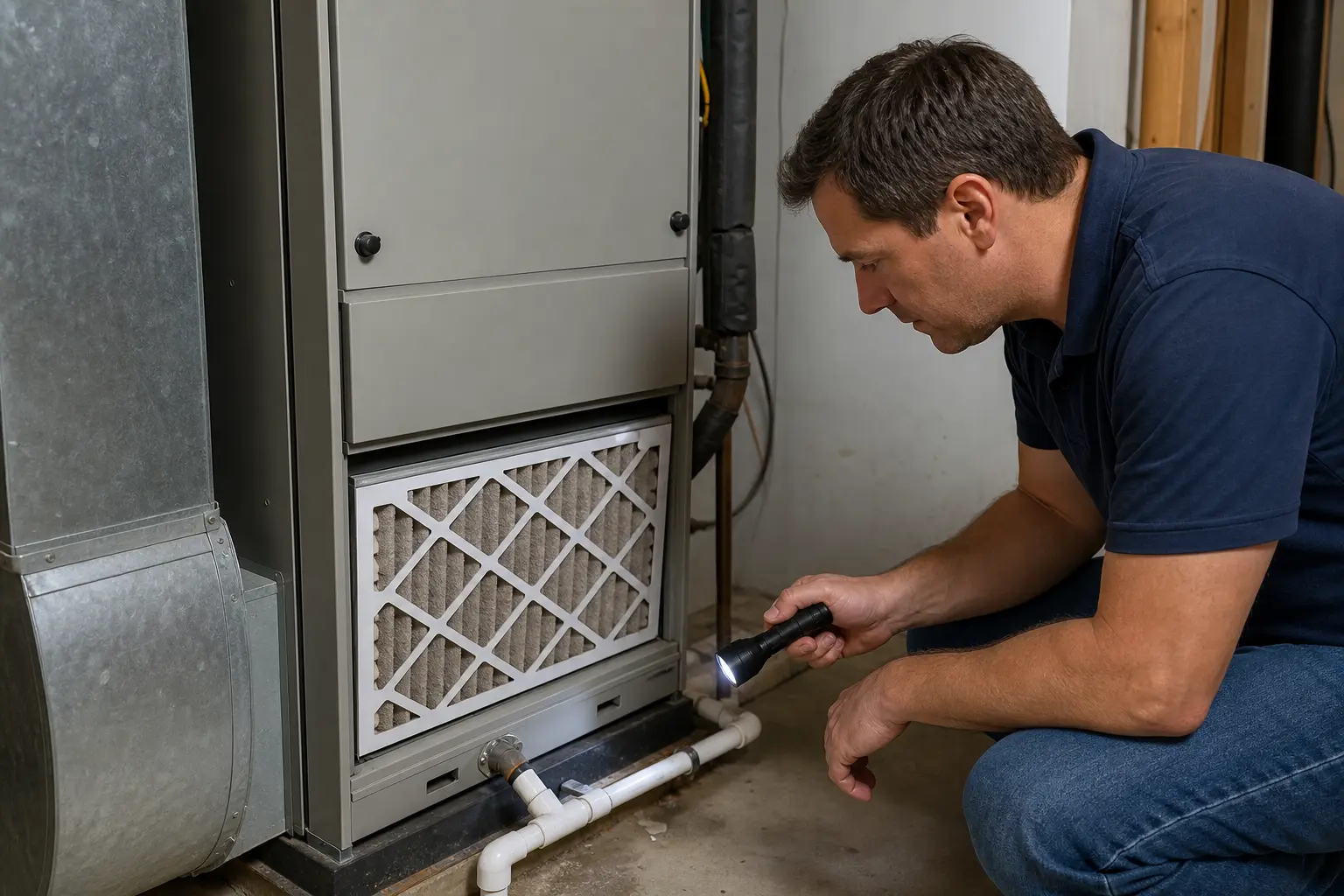

Air handler filter and condensate drain checked for cabinet sweating — Filter and drain clues decide whether this stays a moisture issue or becomes a service call.

Before you buy air-handler parts

In practice, buy only after the moisture source is clear: dirty filter, accessible drain backup, or a visible float switch that stays stuck after the pan and drain are dry. Watch where the first wet spot returns. Then match the model, filter size, drain layout, switch style, and diagnosis before ordering anything.

Jump to: System Split Table · Tools You May Need · Replacement Parts

What this symptom means

Sweating means a cold surface is meeting humid air or water is escaping another path. Good clue: where fresh moisture returns after the cabinet is dried.

A common clue is a dirty filter with weak airflow, because that can make the cabinet and coil colder than normal.
Ice can thaw and imitate cabinet condensation.
A backed-up drain or wet pan creates water at the base instead of fine surface beads.
Insulation gaps and humid rooms can make metal sweat even when the equipment is cooling.

What not to do first

Avoid buying internal parts until the visible clues support it.

Do not seal random seams, replace controls, or ignore cabinet sweating that is dripping into finished space.
Do not buy hidden electrical, refrigerant, blower, or control parts from the page title alone.
Do not ignore water, ice, breaker trips, hot smells, or equipment that will not respond to the thermostat.
Do not use any part unless the size, style, wiring, and diagnosis match your installed system.

Fast sorting table

Use this table after one controlled check and any normal startup delay.

Clue	Most likely cause	Next move
Fine beads on cabinet	Humidity, cold metal, insulation, or airflow	Dry the surface and check filter and room humidity.
Water at base or pan	Drain backup, thawing ice, or pan issue	Check condensate path and shut down if water spreads.
Weak airflow	Filter, return, blower, or coil restriction	Replace filter and clear returns.
Ice visible	Airflow or refrigerant-side issue	Turn cooling off and thaw fully.
Moisture at duct seam	Insulation or air leakage clue	Document the seam and call if hidden insulation is wet.

Checks that actually matter

These checks keep the diagnosis tied to what you can see or safely test. Watch for the first spot that gets wet again.

Dry the cabinet and mark whether moisture returns first on the cold face, a seam, the base, the pan, or the drain line.
Inspect the filter and return grilles.
Look for ice before using the drain path.
Check the pan, drain outlet, and float switch only if accessible.
Call service if sweating returns with good airflow or water reaches finished areas.

When a part is likely

Keep the cart narrow and buy only when the evidence points to that exact item.

Filter evidence: dirty, damp, collapsed, missing, or wrong-size filter with weak airflow.
Float-switch evidence: the drain and pan are dry, but the visible switch is cracked, stuck, or will not reset.
No homeowner-visible clue justifies internal controls, blower parts, refrigerant, or coil parts without service testing.

Tools You May Need

These support safe visible checks, cleanup, and documentation.

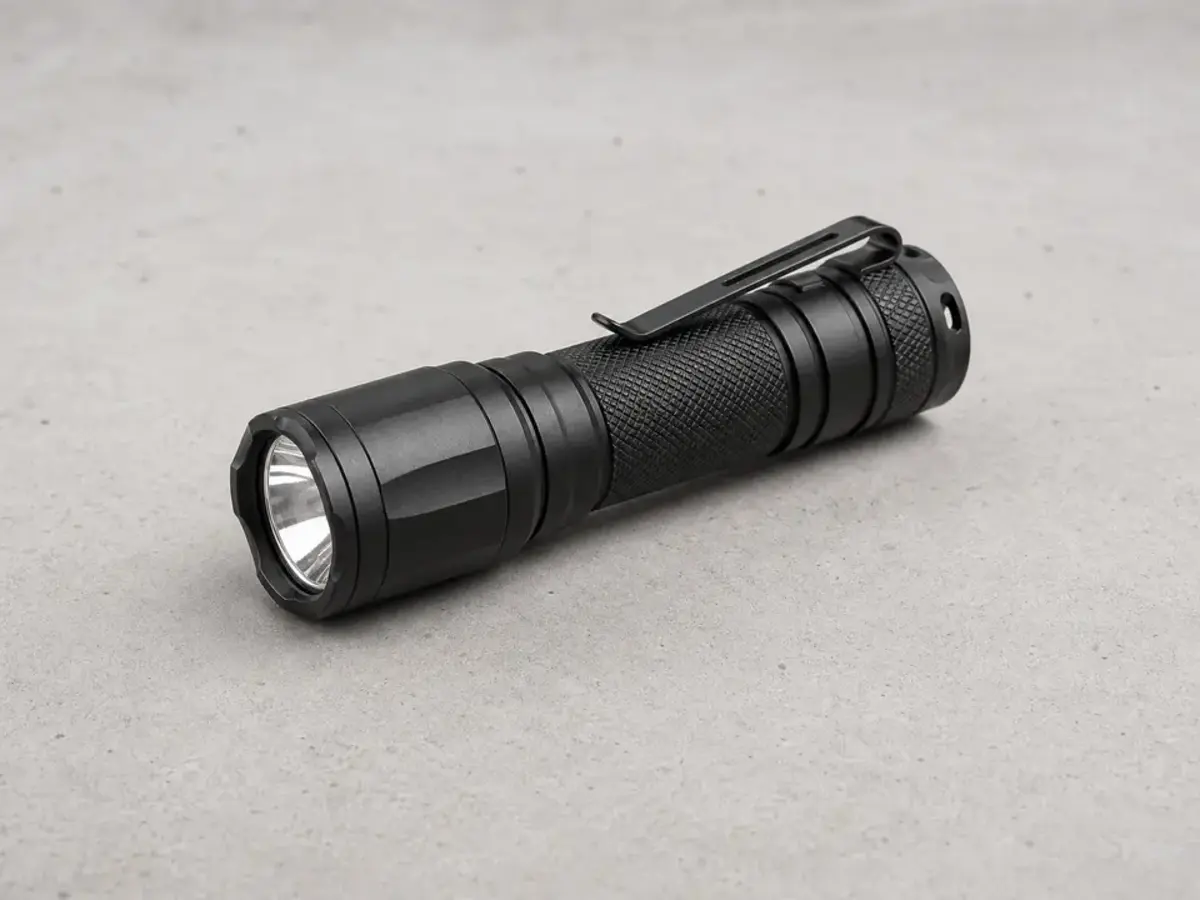

Inspection flashlight

Helps when: Use it to inspect beads of moisture, filter fit, drain pan, seam gaps, and rust streaks.

Skip it when: Skip checks that require opening blower electrical compartments, reaching into the cabinet, or working near water and controls.

Compare inspection flashlights on Amazon

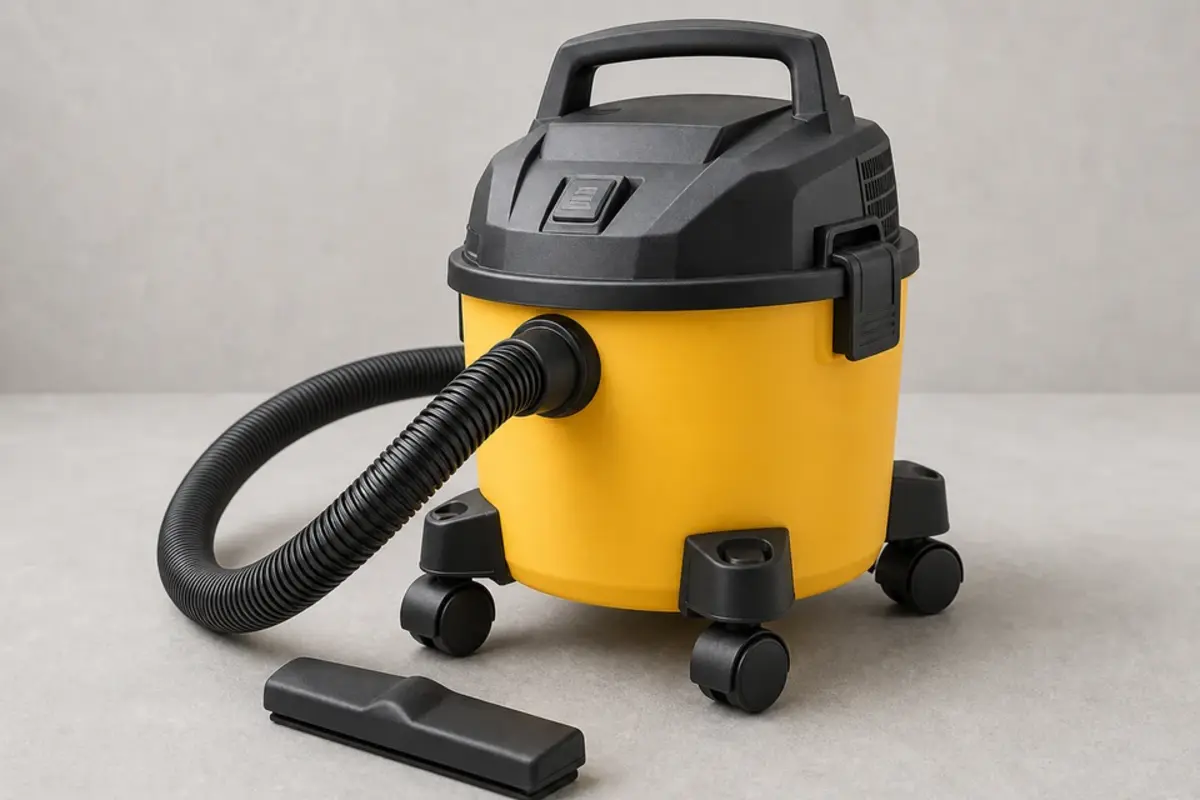

Wet-dry vacuum

Helps when: Use it only at an accessible condensate outlet when pan water suggests a drain backup.

Skip it when: Skip it when the drain outlet is hidden, water is near electrical controls, or you cannot identify the condensate line.

Compare wet-dry vacuums on Amazon

Absorbent towels

Helps when: Use them to dry the cabinet and confirm where fresh moisture returns.

Skip it when: Skip paper towels for active leaks where a pan or wet-dry vacuum is needed.

Compare absorbent towels on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

These are the only buy-first parts that fit the visible homeowner clues.

Air handler correct-size filter: Replace this when the current filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.
Air handler condensate float switch: Use this only when the pan and drain are dry but the visible float switch is cracked, stuck, or will not reset.

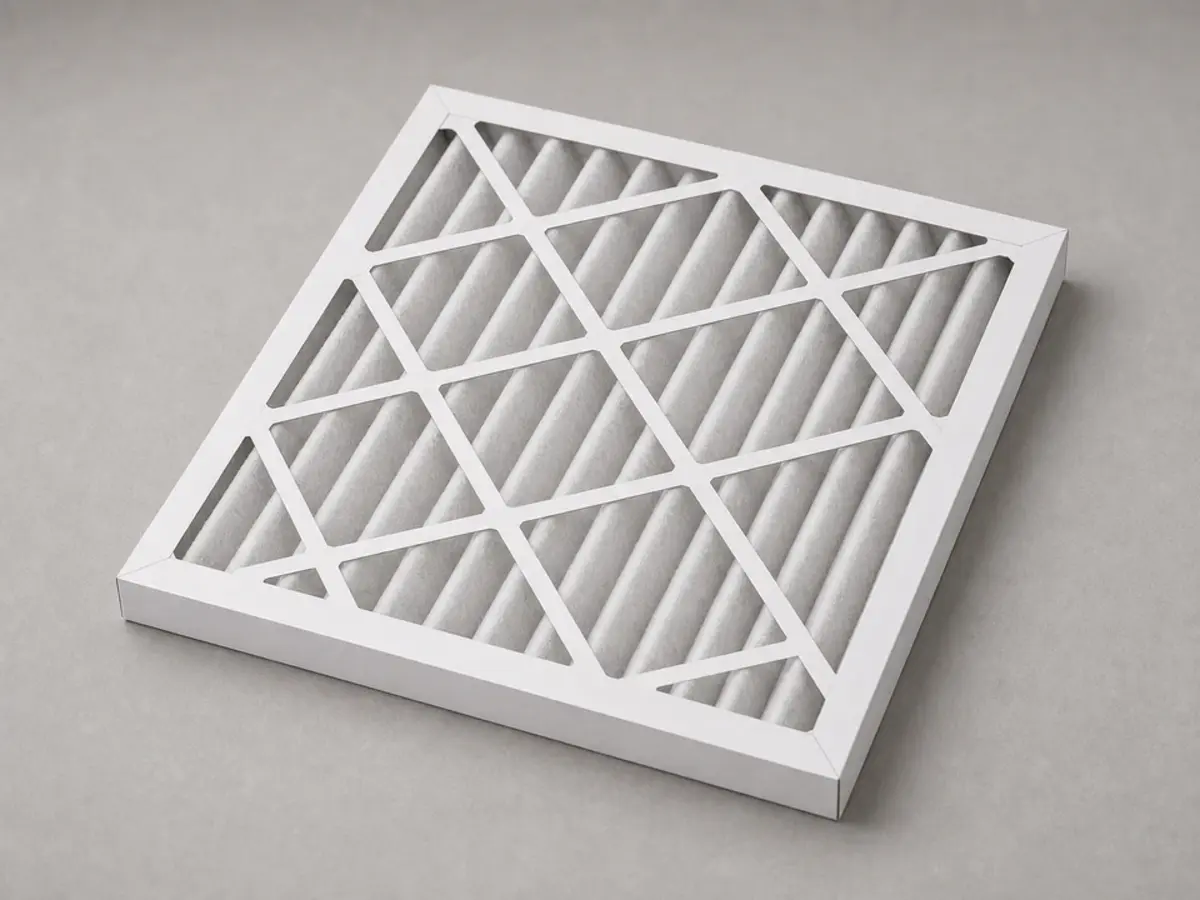

Correct-size air handler filter for cabinet sweating checks

Air handler correct-size filter

Helps when: Replace it when the current filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.

Skip it when: Skip filters that do not match the air-handler rack size, thickness, airflow arrow, and supported restriction range.

Compare air handler filters on Amazon

Air handler condensate float switch

Helps when: Consider one only when the pan and drain are dry and the visible float switch is cracked, stuck, or will not reset.

Skip it when: Skip it when water is still lifting a working switch, the drain is not clear, or the mounting style does not match.

Compare air handler condensate float switches on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Why is my air handler cabinet sweating?

The cabinet surface may be cold enough to condense humid air, or water may be coming from ice, pan, or drain trouble.

Can a dirty filter cause sweating?

Yes. Low airflow can make the coil and cabinet colder and can also contribute to ice.

Is cabinet sweating normal?

Light surface sweat can happen in humid spaces, but dripping, spreading water, or repeat moisture needs diagnosis.

What if water is at the base?

Check the pan, drain, float switch, and thawing ice. Turn cooling off if water spreads.

Should I tape the seams?

Not first. Find the moisture source before sealing or insulating anything.

Can ice cause this?

Yes. Thawing ice can look like cabinet sweat or drain overflow.

What can I buy safely?

A correct-size filter, towels, flashlight, and wet-dry vacuum are reasonable when the clues fit.

When should I call service?

Call if moisture returns with good airflow, ice returns, the drain is hidden, or water reaches electrical controls or finished spaces.

How this guide was built

Repair Riot built this page around safe homeowner checks: airflow, filter condition, visible water, cabinet behavior, condensate safety, and clear stop points before electrical or refrigerant work.

U.S. Department of Energy air conditioner maintenance — supports filter, airflow, coil, and condensate-maintenance guidance
EPA Section 608 technician certification — supports leaving sealed refrigerant work to certified technicians
