Indoor coil ice

Air handler frozen coil

If the air handler coil is frozen, turn cooling off and let the ice thaw before judging parts. Then check filter airflow, return blockage, pan water, drain safety, blower operation, and whether ice returns.

Good clue: a dirty filter or blocked return is the homeowner-fix cause to rule out first; ice that returns with good airflow needs service.

The ice hides the real clue. Thaw first, then inspect airflow and water.

Don’t start with: If ice is still visible, leave cooling off; scraping, forced cooling, refrigerant, and sealed-system parts come after service diagnosis.

Ice is visible on the coil or line?Turn cooling off and let the system thaw fully before another cooling call.

Ice returns after a clean filter?Stop repeated restarts and schedule service for airflow and refrigerant diagnosis.

Do this first

Turn cooling off if ice is visible on the coil area or refrigerant line.
Run Fan On only if the blower runs normally and no water reaches controls.
Replace a dirty, damp, collapsed, or wrong-size filter.
Use towels for thaw water and check the pan and drain outlet.
Do not scrape ice or pour hot water into the cabinet.
Call service if ice returns after airflow and drain checks.

Last reviewed: 2026-06-28

Fast symptom sorter

Filter dirty or collapsed?

Replace exact filter and thaw fully before retesting.

Returns blocked?

Clear return and supply airflow before judging refrigerant.

Pan water after thaw?

Check condensate drain and float switch before buying parts.

Blower weak or not running?

Stop before blower or control diagnosis.

Ice returns with good airflow?

Call for refrigerant, metering, coil, or blower testing.

Thaw the ice before diagnosing

A frozen coil usually starts with airflow, but repeat ice can point beyond homeowner parts.

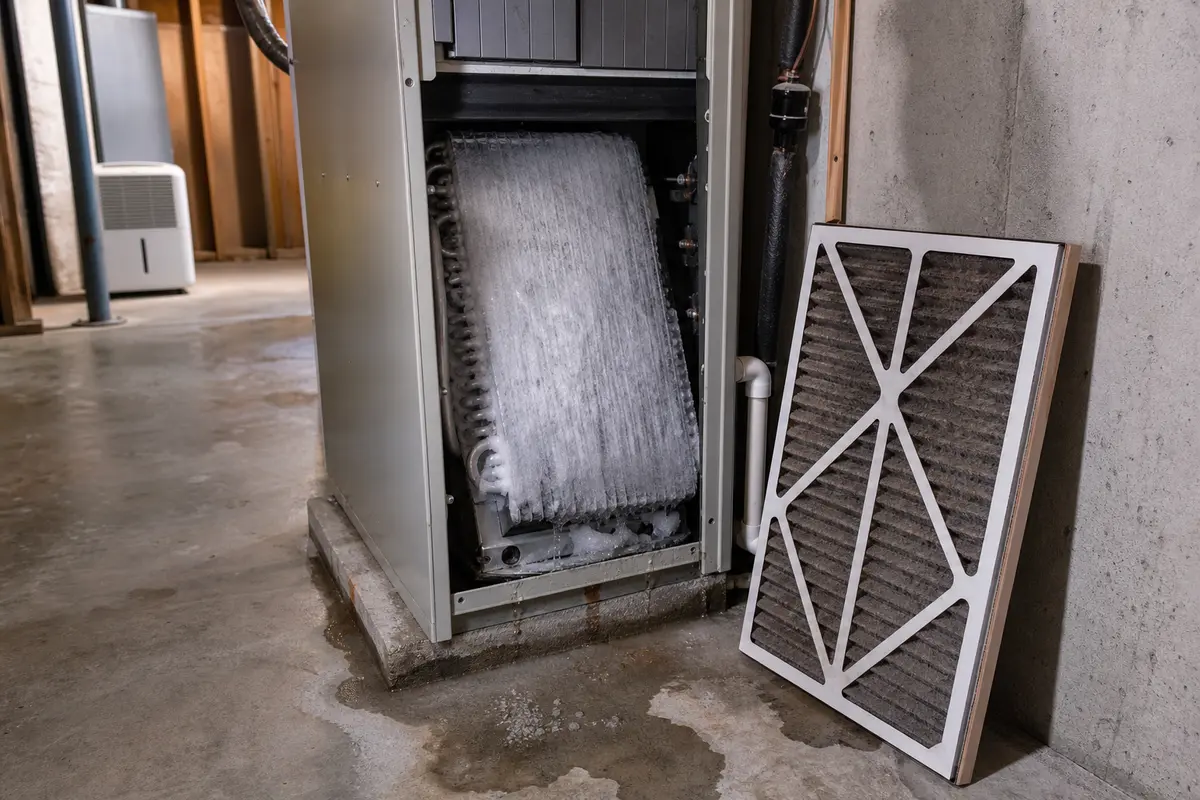

Air handler frozen coil checked with dirty filter clue — A dirty filter beside a frozen coil is the first visible airflow clue to fix.

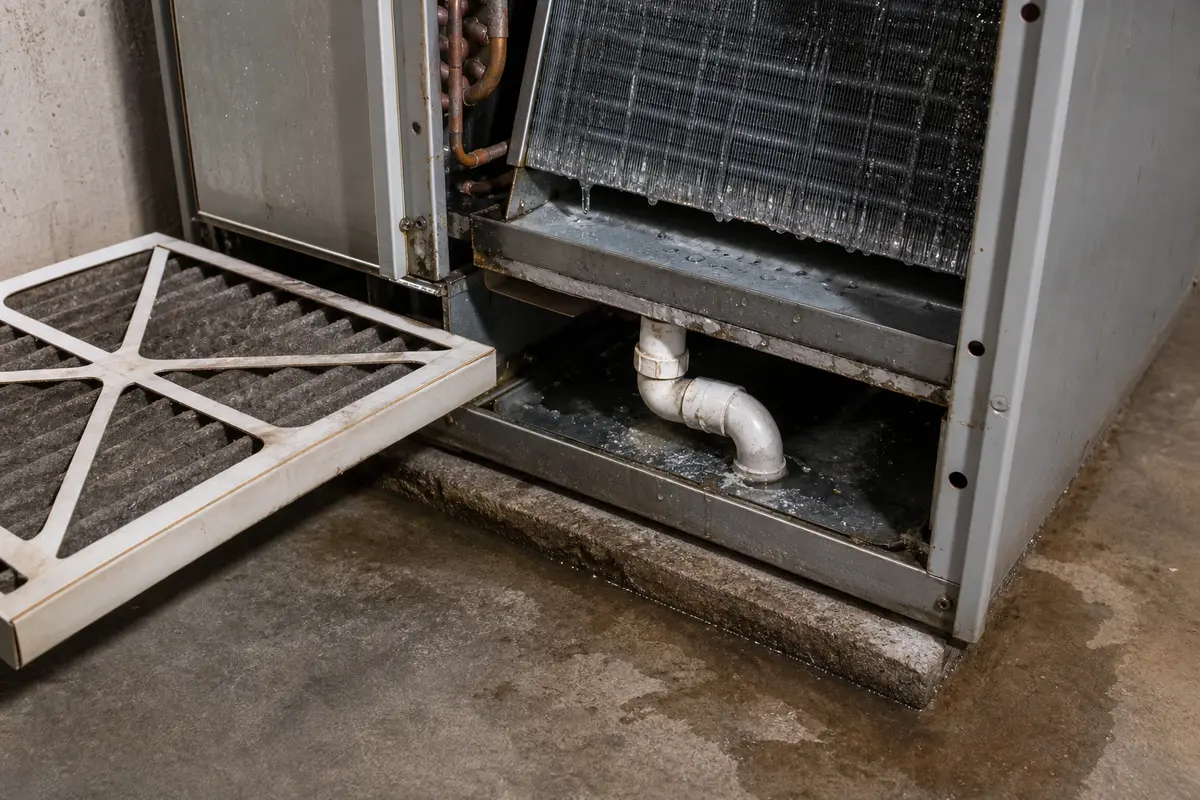

Air handler filter and drain checked after frozen coil thaw — After thawing, filter fit and condensate drainage decide the safe next step.

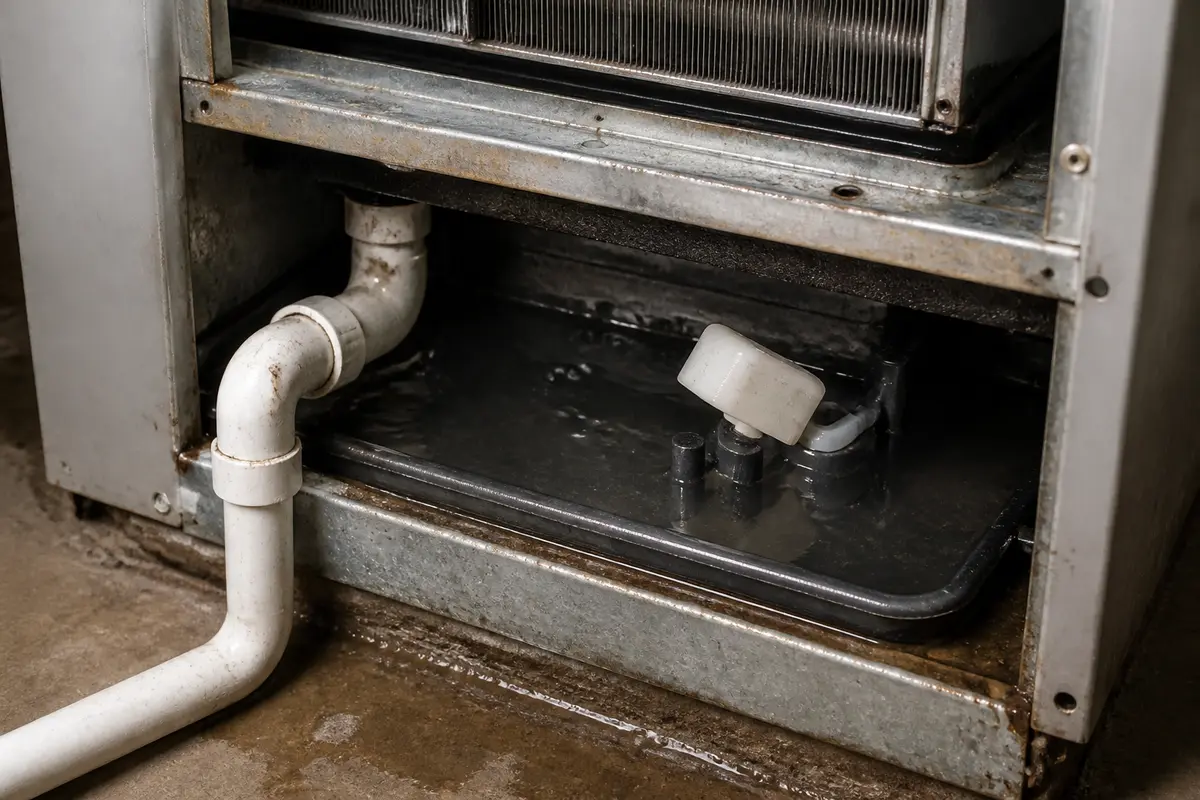

Air handler drain pan checked for thaw water after frozen coil — Thaw water can fill the pan and lift a float switch after the ice melts.

Before you buy air-handler parts

Buy only after the coil is thawed and the clue is visible. A filter is reasonable when it is dirty, damp, collapsed, or wrong size. A float switch is reasonable only after the pan and drain are dry and the switch still sticks. Match the exact model, drain layout, filter size, switch mounting style, and confirmed diagnosis before ordering anything.

Jump to: System Split Table · Tools You May Need · Replacement Parts

What this symptom means

Start by turning cooling off; the coil must thaw before diagnosis is honest.

Low airflow is the first homeowner-fix cause to rule out.
Thaw water can make a drain or float-switch symptom appear afterward.
Weak blower operation can freeze the coil even with a clean filter.
Ice that returns with normal airflow points toward service-only diagnosis.

What not to do first

Avoid buying internal parts until the visible clues support it.

If ice is still visible, leave cooling off; scraping, forced cooling, refrigerant, and sealed-system parts come after service diagnosis.
If the page title is the only evidence, keep hidden electrical, refrigerant, blower, and control parts out of the cart.
Do not ignore water, ice, breaker trips, hot smells, scraping, whistling air leaks, or equipment that will not respond to the thermostat.
Do not use any part unless the size, style, wiring, and diagnosis match your installed system.

Fast sorting table

Use this table after one controlled check and any normal startup delay.

Clue	Most likely cause	Next move
Dirty or collapsed filter	Low airflow across coil	Install exact filter and thaw fully.
Blocked returns	Airflow restriction	Clear grilles and retest after thaw.
Pan water after thaw	Drain backup or float switch	Clear water before judging switch.
Blower weak or stopped	Blower or control issue	Stop before internal work.
Ice returns	Airflow, refrigerant, metering, or coil issue	Call HVAC service.

Checks that actually matter

These checks keep the diagnosis tied to what you can see or safely test.

Turn cooling off and wait until ice is gone.
Use Fan On only if airflow is normal and water stays away from controls.
Inspect filter size, condition, and airflow arrow.
Check return grilles and supply registers.
Look for pan water and drain backup after thawing.

When a part is likely

Keep the cart narrow and buy only when the evidence points to that exact item.

Filter evidence: dirty, damp, collapsed, missing, or wrong-size filter with weak airflow or ice.
Float-switch evidence: the drain and pan are dry, but the visible switch is cracked, stuck, or will not reset.
No homeowner-visible clue justifies refrigerant, metering devices, coils, boards, motors, or capacitors without service testing.

Tools You May Need

These support safe visible checks, cleanup, and documentation.

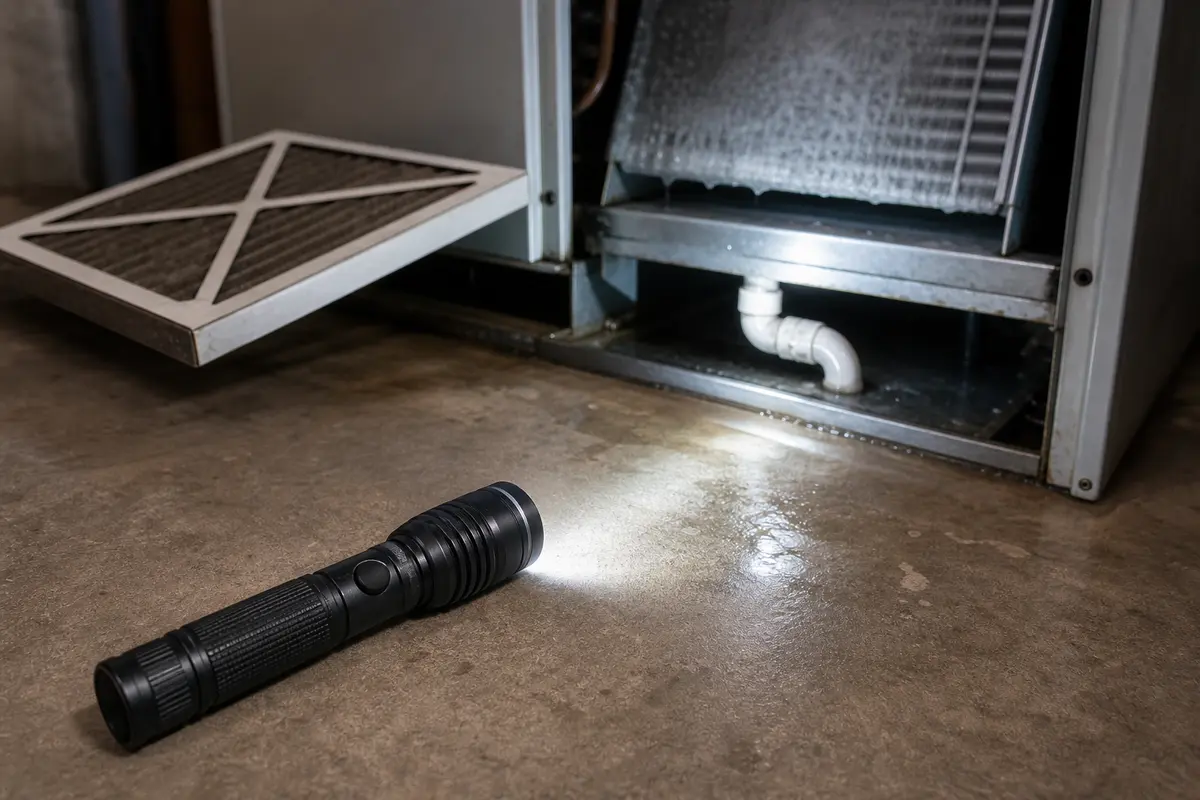

Inspection flashlight

Helps when: Use it to inspect ice, filter fit, return blockage, pan water, and drain clues without touching the coil.

Skip it when: Skip checks that require opening blower electrical compartments, reaching into the cabinet, or working near water and controls.

Compare inspection flashlights on Amazon

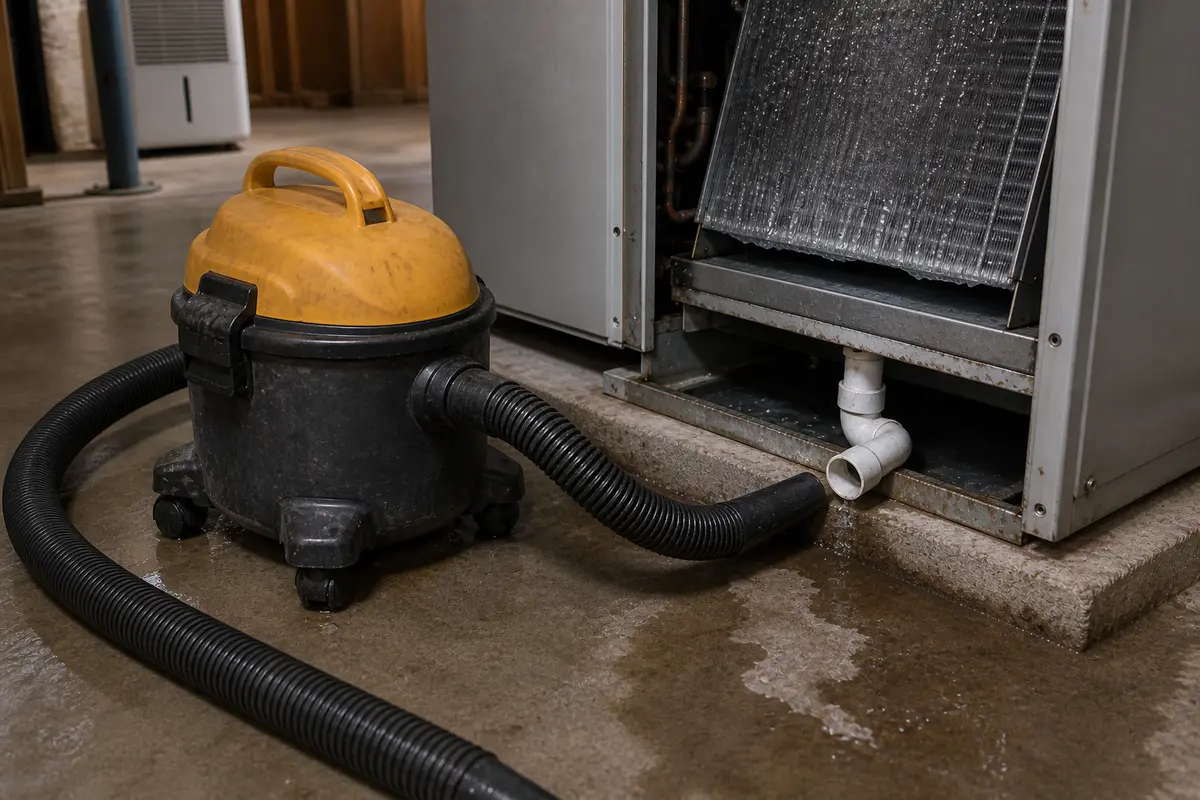

Wet-dry vacuum

Helps when: Use it only at a known condensate outlet when thaw water points to a drain backup.

Skip it when: Skip it when the drain outlet is hidden, water is near electrical controls, or you cannot identify the condensate line.

Compare wet-dry vacuums on Amazon

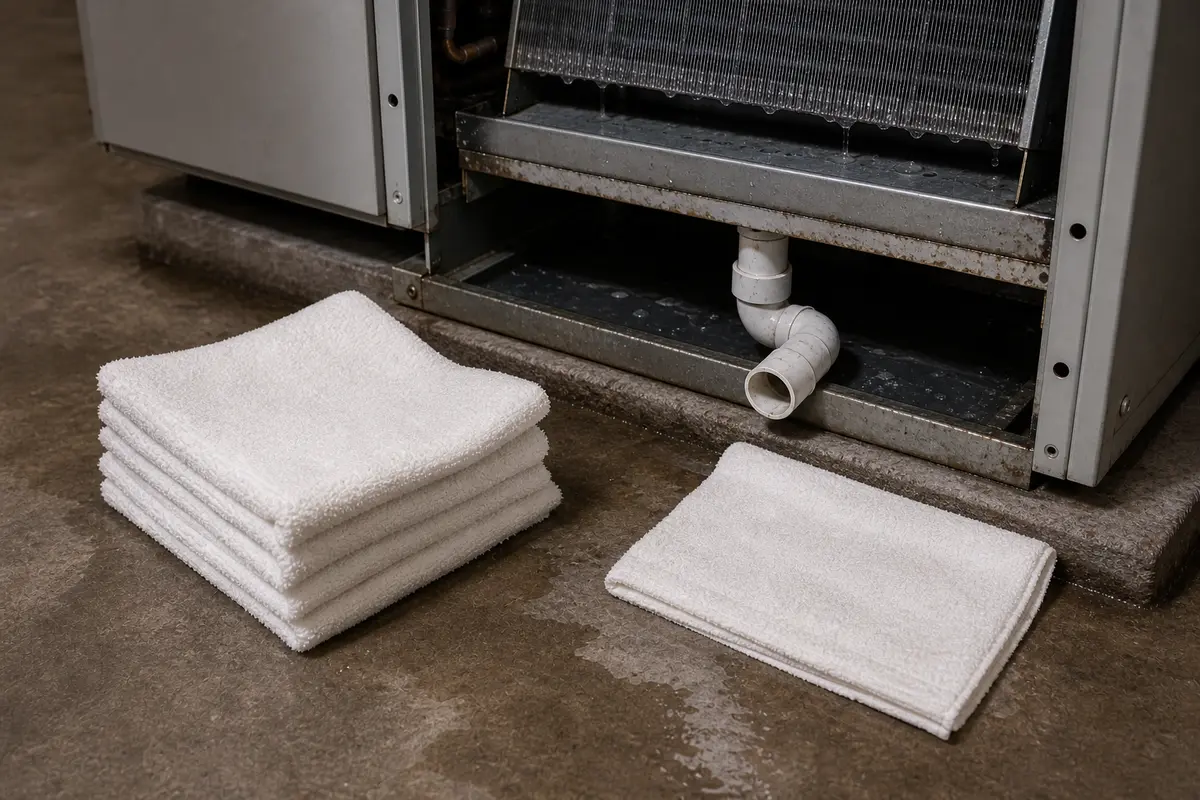

Absorbent towels

Helps when: Use them to manage thaw water and see whether fresh pan water returns.

Skip it when: Skip paper towels for active leaks where a pan or wet-dry vacuum is needed.

Compare absorbent towels on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

These are the only buy-first parts that fit the visible homeowner clues.

Air handler correct-size filter: Use this when the installed filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.
Air handler condensate float switch: Use this only after the pan and drain are dry and the visible float switch is cracked, stuck, or will not reset.

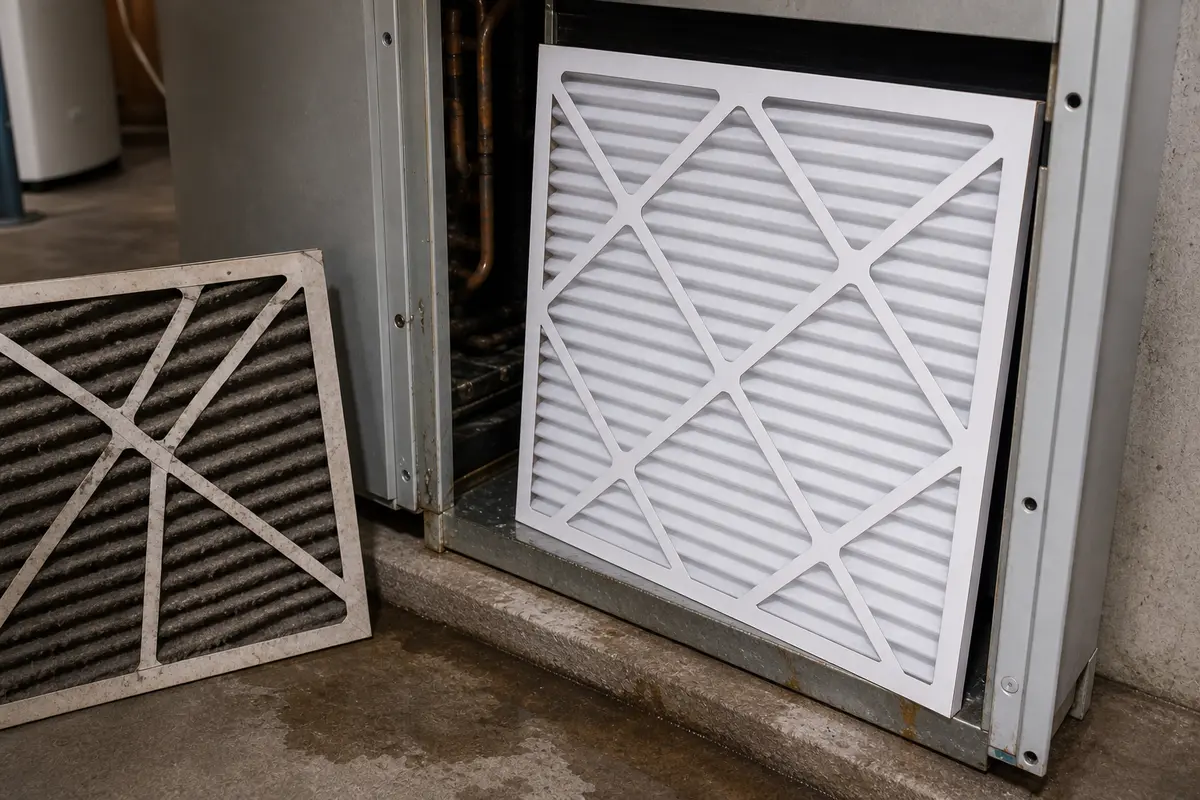

Correct-size air handler filter for frozen-coil airflow checks

Air handler correct-size filter

Helps when: Replace it after the coil thaws if the installed filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak. Match the rack size, thickness, and airflow arrow before retesting.

Skip it when: Skip filters that do not match the air-handler rack size, thickness, airflow arrow, and supported restriction range.

Compare air handler filters on Amazon

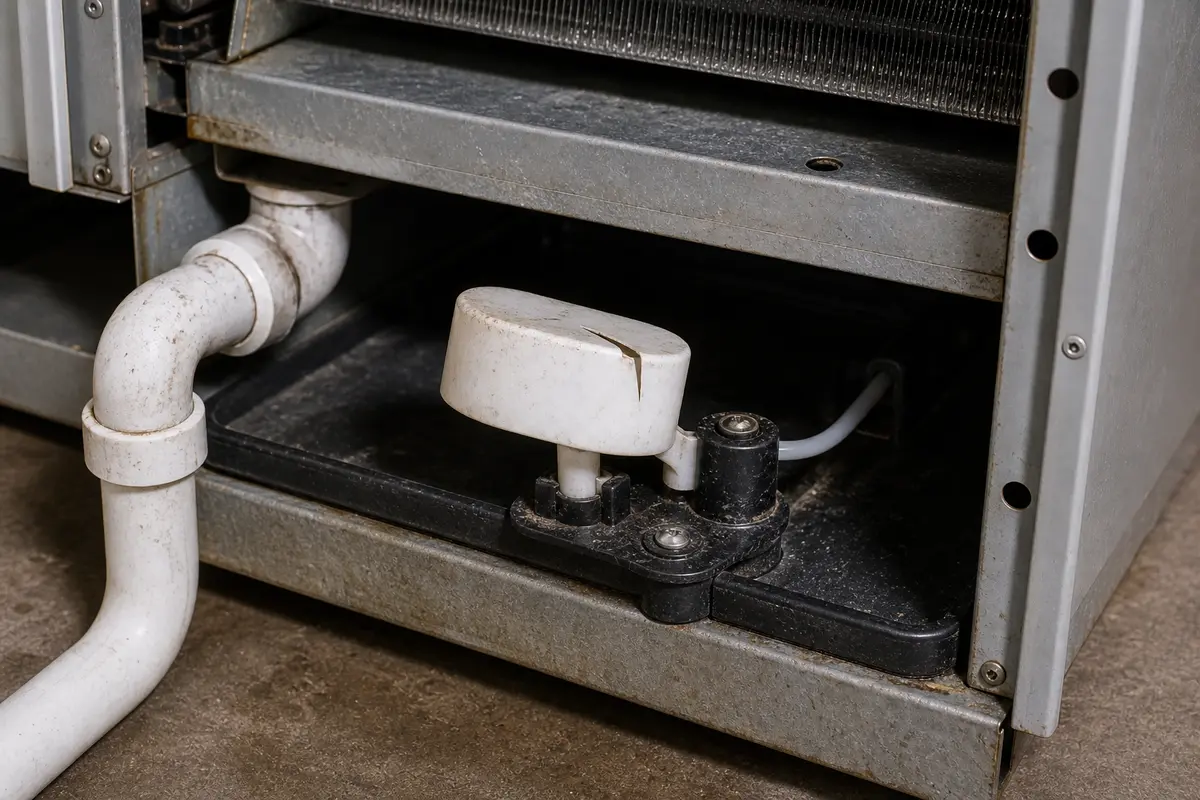

Air handler condensate float switch

Helps when: Consider one only after the pan and drain are dry and the visible float switch is cracked, stuck, or will not reset.

Skip it when: Skip it when water is still lifting a working switch, the drain is not clear, or the mounting style does not match.

Compare air handler condensate float switches on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Why is my air handler coil frozen?

Common causes are low airflow, dirty filter, blocked returns, weak blower operation, dirty coil, or refrigerant-side trouble.

Should I turn the AC off?

Yes. Turn cooling off and let the ice thaw fully before diagnosing.

Can I scrape the ice off?

No. Scraping can damage the coil and still leaves the real cause unresolved.

Can a dirty filter cause a frozen coil?

Yes. A dirty or wrong-size filter is one of the first checks.

What if water appears after thawing?

Check the pan, drain, and float switch because thaw water can overflow the condensate path.

Should I add refrigerant?

No. Refrigerant work requires certified service and a tested leak or charge diagnosis.

What can I buy safely?

A correct-size filter, flashlight, towels, and wet-dry vacuum are reasonable when the visible clues fit.

When should I call service?

Call if ice returns after airflow checks, the blower is weak, the drain is hidden, or refrigerant-side trouble is suspected.
