Indoor blower not running

Air handler fan not running

If the air handler fan is not running, start outside the blower compartment: thermostat command, Fan On mode, breaker status, filter restriction, pan water, float switch position, and any hot smell or buzz.

Good clue: no fan with pan water means dry the pan and drain first. No fan with hot smell or breaker trip means keep it off.

This symptom can be a command issue, safety stop, airflow issue, or failed blower circuit. Visible clues decide the next move.

Don’t start with: Do not reach into the blower, spin the wheel by hand, or replace motor parts from the symptom alone.

Fan On does not start the blower?Check filter, breaker, and pan water, then stop before internal blower work.

Fan runs only in Fan On?The blower can run, so look at the cooling call and safety clues next.

Do this first

Set the thermostat to Fan On once and note whether the blower responds.
Check the breaker only once; do not keep resetting a tripped breaker.
Replace a dirty, damp, collapsed, or wrong-size filter.
Look for pan water or a raised float switch.
Keep the unit off for hot smell, sharp buzzing, or repeated breaker trips.
Do not remove blower electrical covers or reach into the blower compartment.

Last reviewed: 2026-06-28

Fast symptom sorter

Fan runs in Fan On?

The blower can run; check cooling call, outdoor unit, drain, and thermostat clues.

Fan does not run in Fan On?

Check filter, breaker, and pan water, then stop before blower diagnosis.

Pan water or raised float?

Clear the water path before replacing a switch.

Breaker trips again?

Keep the system off and call service.

Hot smell or sharp buzz?

Stop before motor, board, or capacitor work.

Use command, airflow, and water clues first

A stopped air-handler fan is not a motor diagnosis until simple visible clues are ruled out.

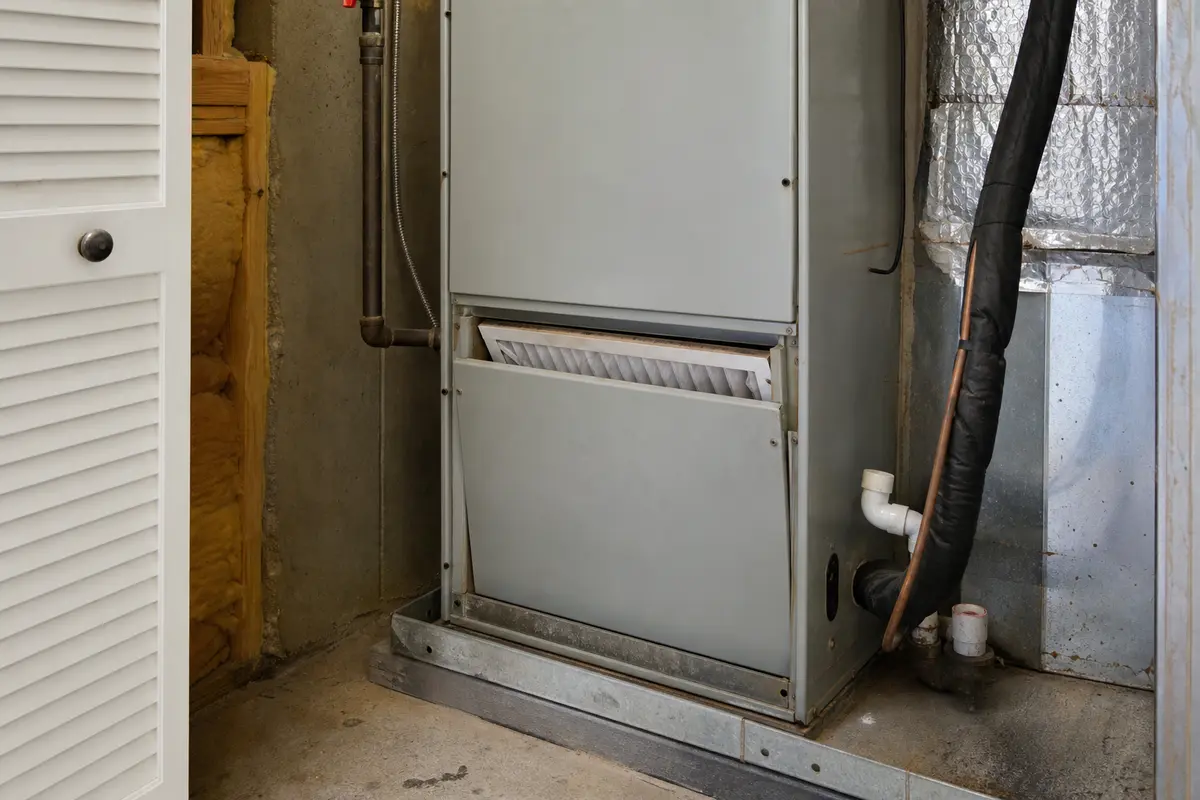

Air handler cabinet checked when fan is not running — Start at the thermostat command, cabinet, filter slot, and drain area before assuming a blower failure.

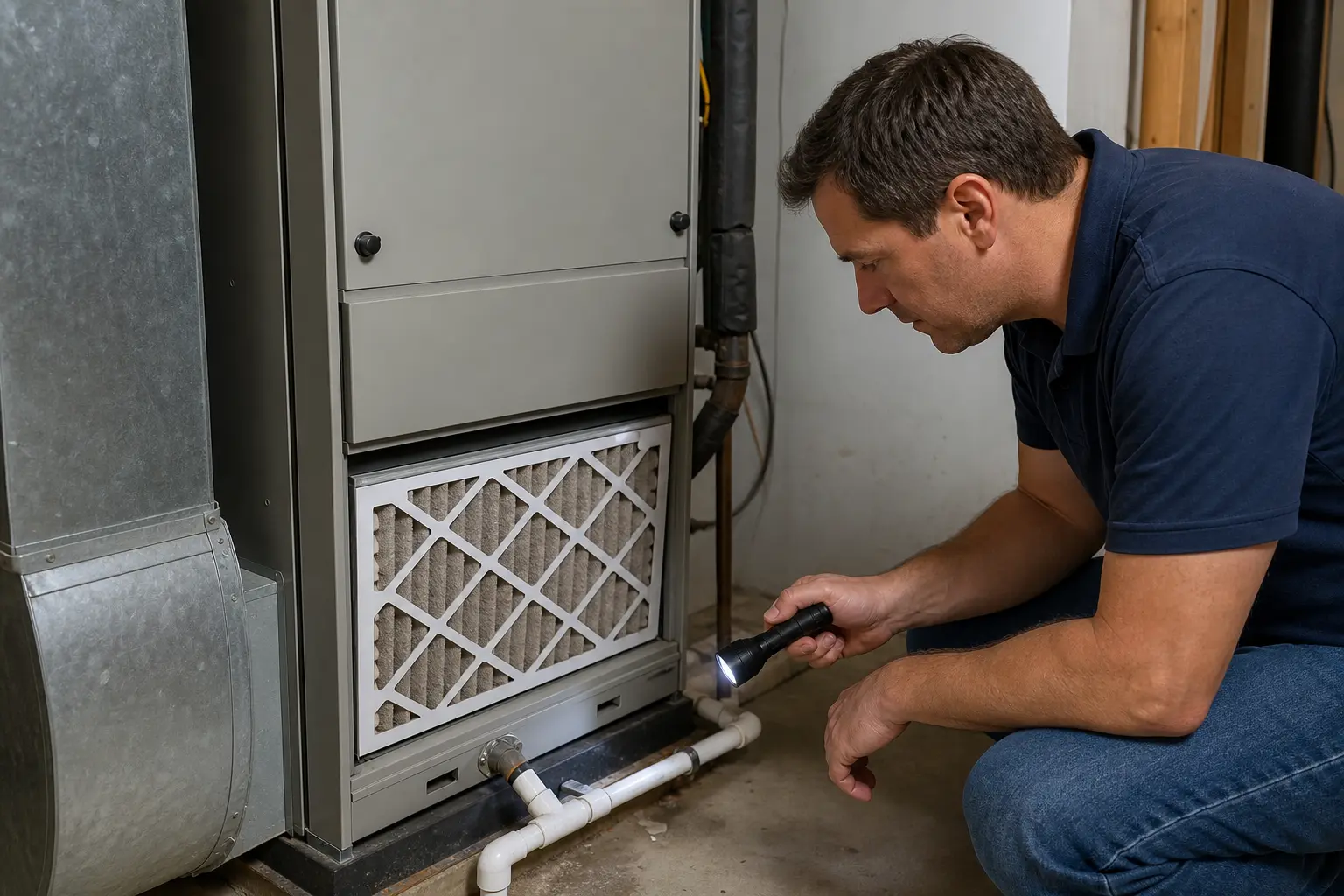

Air handler filter and drain checked when fan is not running — A blocked filter or wet pan can stop operation without proving the blower motor failed.

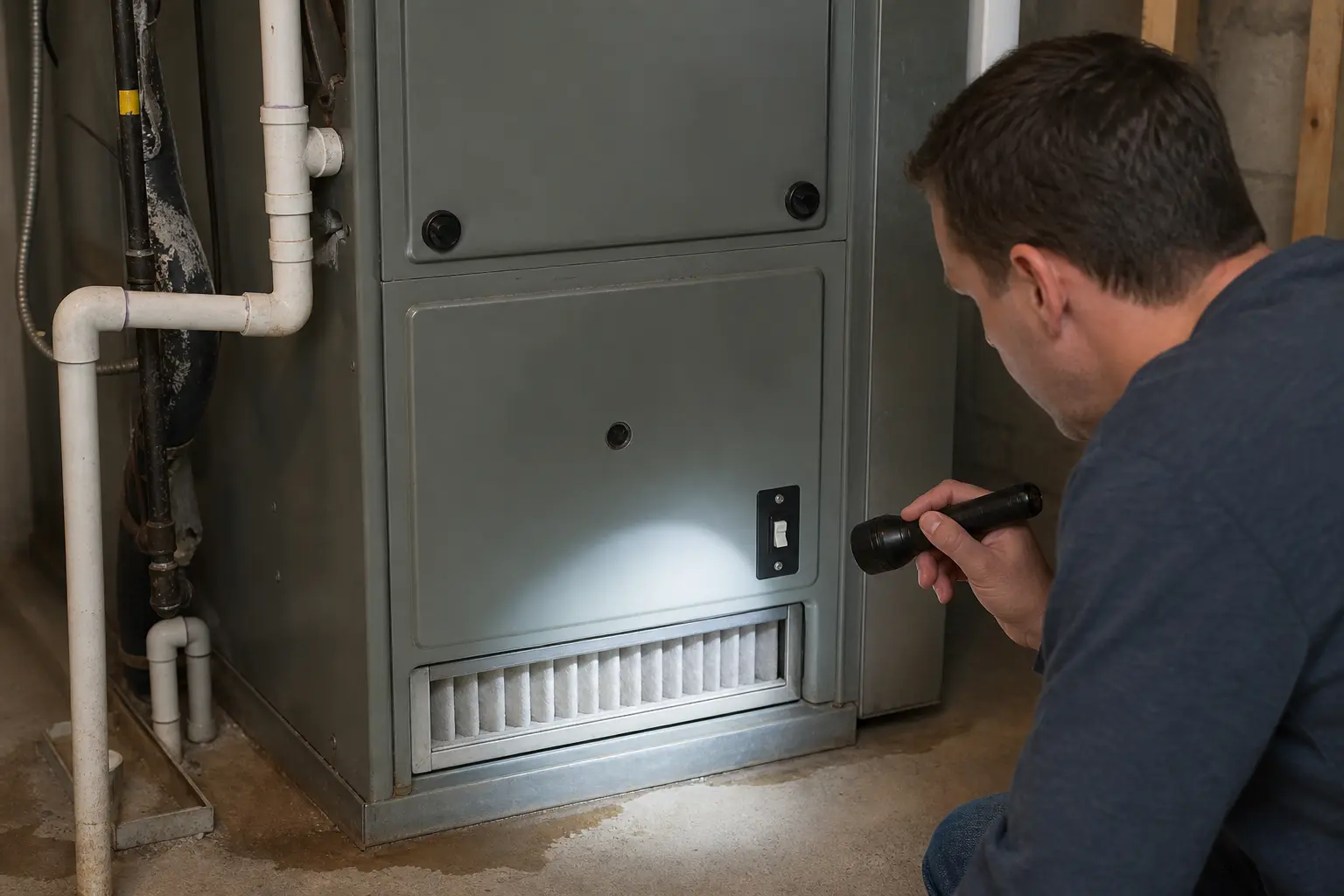

Air handler access cabinet checked for fan not running clues — Normal access checks are fair; internal blower and control compartments are service territory.

Before you buy air-handler parts

Buy only after the stop clue is visible. A filter is reasonable when airflow is weak or the filter is dirty, damp, collapsed, or wrong size. A float switch is reasonable only after the pan and drain are dry and the switch still sticks. Match the exact model, wiring, mounting style, filter size, and confirmed diagnosis before ordering anything.

Jump to: System Split Table · Tools You May Need · Replacement Parts

What this symptom means

Start with one controlled command: thermostat Fan On.

If Fan On works, the blower is capable of running and the failure is in the call, safety, or cooling sequence.
If Fan On fails, a filter, breaker, drain safety, blower, or control issue is still possible.
Pan water can stop some systems before the blower runs.
Hot smell, buzzing, or breaker trips are service stop signs.

What not to do first

Avoid buying internal parts until the visible clues support it.

Do not reach into the blower, spin the wheel by hand, or replace motor parts from the symptom alone.
If the page title is the only evidence, keep hidden electrical, refrigerant, blower, and control parts out of the cart.
Do not ignore water, ice, breaker trips, hot smells, scraping, or equipment that will not respond to the thermostat.
Do not use any part unless the size, style, wiring, and diagnosis match your installed system.

Fast sorting table

Use this table after one controlled check and any normal startup delay.

Clue	Most likely cause	Next move
Runs in Fan On	Blower can run; call or cooling sequence issue	Check thermostat, drain, filter, and outdoor unit.
No Fan On response	Power, safety, blower, or control issue	Check visible clues and stop before internal work.
Pan water or raised float	Condensate safety doing its job	Clear water before judging the switch.
Dirty or collapsed filter	Airflow restriction and possible ice	Replace exact filter and retest once.
Breaker trips or hot smell	Electrical or motor fault	Keep off and call service.

Checks that actually matter

These checks keep the diagnosis tied to what you can see or safely test.

Use Fan On once and write down the result.
Check thermostat mode, setpoint, and batteries if applicable.
Inspect filter size, condition, and airflow arrow.
Look for pan water, float-switch position, and ice clues.
Stop if the next step would expose blower wiring or controls.

When a part is likely

Keep the cart narrow and buy only when the evidence points to that exact item.

Filter evidence: dirty, damp, collapsed, missing, or wrong-size filter with weak airflow, ice, or restricted return air.
Float-switch evidence: the pan and drain are dry, but the visible switch is cracked, stuck, or will not reset.
No homeowner-visible clue justifies blower motors, boards, relays, or capacitors without service testing.

Tools You May Need

These support safe visible checks, cleanup, and documentation.

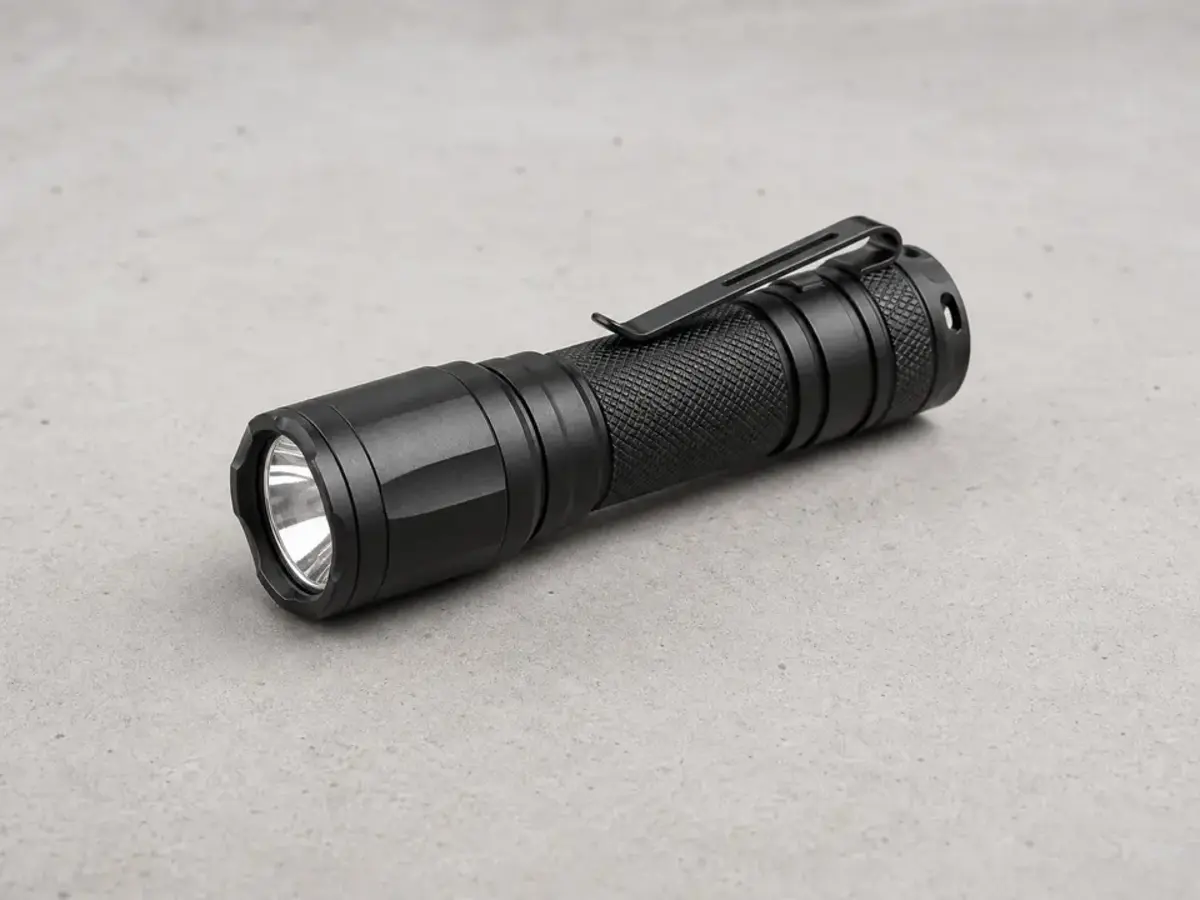

Inspection flashlight

Helps when: Use it to inspect thermostat response clues, filter fit, pan water, float switch, and ice clues.

Skip it when: Skip checks that require opening blower electrical compartments, reaching into the cabinet, or working near water and controls.

Compare inspection flashlights on Amazon

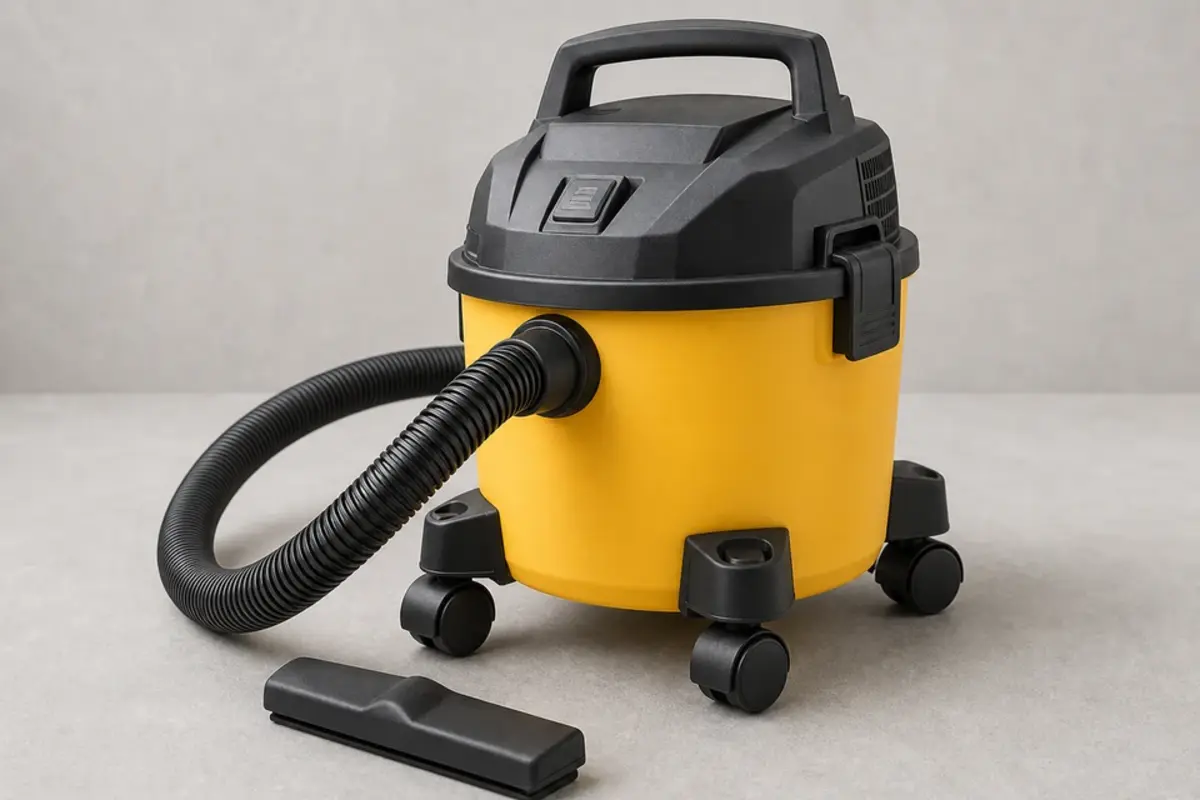

Wet-dry vacuum

Helps when: Use it only at a known condensate outlet when pan water may be holding a safety switch open.

Skip it when: Skip it when the drain outlet is hidden, water is near electrical controls, or you cannot identify the condensate line.

Compare wet-dry vacuums on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

These are the only buy-first parts that fit the visible homeowner clues.

Air handler correct-size filter: Use this when the installed filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.
Air handler condensate float switch: Use this only after the pan and drain are dry and the visible float switch is cracked, stuck, or will not reset.

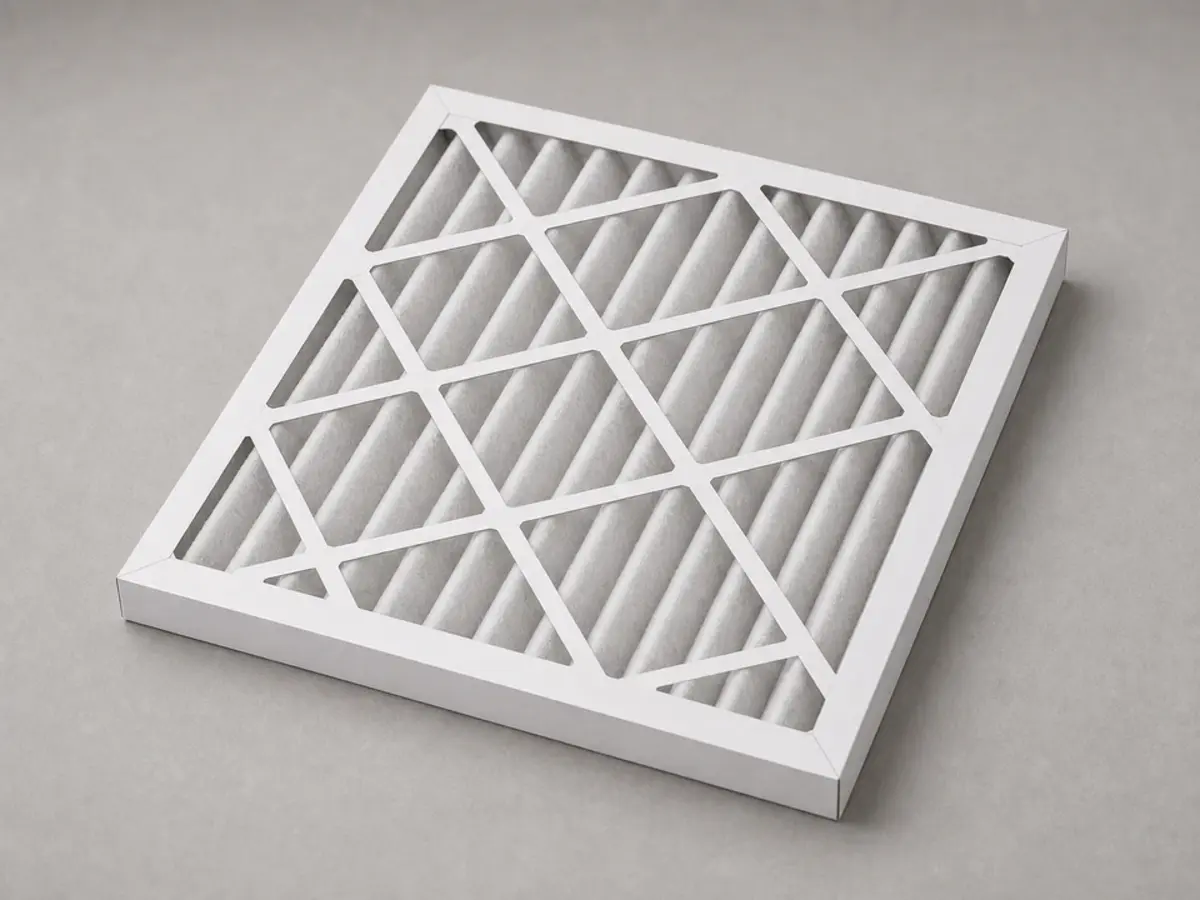

Correct-size air handler filter for fan-not-running airflow checks

Air handler correct-size filter

Helps when: Replace it when the installed filter is dirty, damp, collapsed, missing, or the wrong size and airflow is weak.

Skip it when: Skip filters that do not match the air-handler rack size, thickness, airflow arrow, and supported restriction range.

Compare air handler filters on Amazon

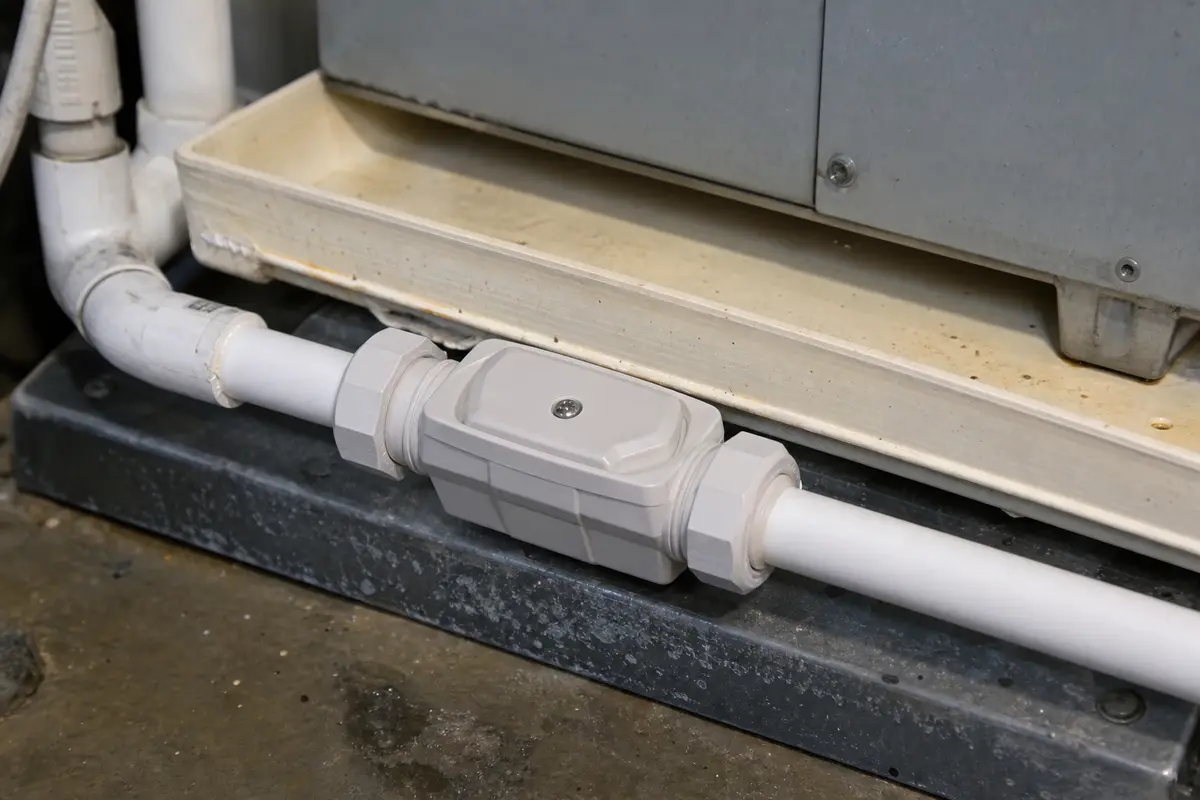

Air handler condensate float switch

Helps when: Consider one only after the pan and drain are dry and the visible float switch is cracked, stuck, or will not reset.

Skip it when: Skip it when water is still lifting a working switch, the drain is not clear, or the mounting style does not match.

Compare air handler condensate float switches on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Why is my air handler fan not running?

Common clues include thermostat command, power, filter restriction, condensate safety, blower trouble, or internal controls.

Should I try Fan On?

Yes. Fan On helps separate a blower that can run from a cooling-call or safety issue.

Can a float switch stop the fan?

On some systems, pan water can interrupt operation. Clear the water source before replacing the switch.

Can a dirty filter stop the fan?

A dirty filter may not directly stop the fan, but it can create airflow and ice problems that trigger shutdowns.

Should I reset the breaker?

Check it once. If it trips again, keep the system off and call service.

Should I replace the blower motor?

Not from this symptom alone. Motor and control work need tested diagnosis.

What can I buy safely?

A correct-size filter, flashlight, and wet-dry vacuum are reasonable only when the visible clues fit.

When should I call service?

Call for no response in Fan On, breaker trips, hot smell, sharp buzzing, recurring pan water, or hidden controls.

How this guide was built

Repair Riot built this page around visible homeowner checks. That includes thermostat demand, airflow, filter condition, water, condensate safety, blower sounds, outdoor clues, and clear stop points before internal electrical or refrigerant work.

U.S. Department of Energy air conditioner maintenance — supports filter, airflow, coil, and condensate-maintenance guidance
EPA Section 608 technician certification — supports leaving sealed refrigerant work to certified technicians
