Direct answer: To replace a bathtub overflow plate and linkage assembly, remove the old cover and linkage through the overflow opening, match the new plate orientation to the old one, install the linkage without twisting it, adjust the open and closed positions, and test that the tub drains and holds water.
This is a manageable repair for many homeowners because the parts usually come out through the overflow opening behind the tub wall. The main job is matching the old style closely enough that the plate sits flat, the overflow opening is aimed correctly, and the linkage moves the drain without binding.
Before you start: Match the overflow opening size, screw spacing, plate style, linkage style, and plate opening orientation before ordering.
Bathtub overflow plates can look similar from the front while using different linkage, screw spacing, and opening layouts behind the plate. Match the old assembly before tightening the new one.
This page fits when: A lever, trip handle, or knob on the overflow plate opens and closes the tub drain.
Check something else when: Use a matching linkage assembly. A plain overflow cover will not operate the drain if the old plate controlled an internal stopper.
This page fits when: The tub uses a toe-touch, lift-and-turn, push-pull, or other stopper at the drain opening.
Check something else when: A plain overflow cover may be correct, but do not remove linkage parts unless the drain stopper works independently.
This page fits when: The new plate sits flat, the screw holes line up, and the visible overflow or lever opening matches the original orientation.
Check something else when: If the plate can be installed more than one way, match the original position first, then test that water can enter the overflow and the control moves freely.
If it works: You confirmed the tub uses an overflow plate and linkage assembly and the replacement part appears to be the correct repair path.
If it doesn’t: If your tub uses a different stopper style at the drain itself, match your repair to that stopper type before buying parts.

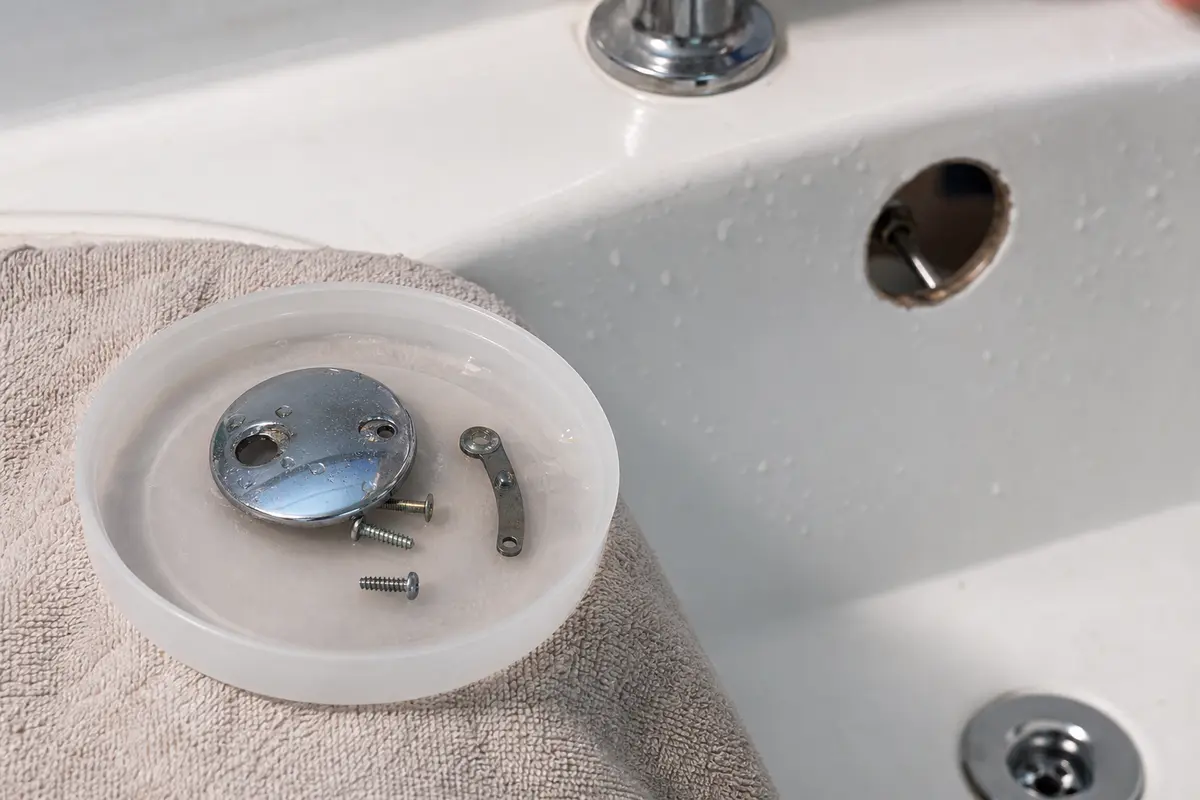

If it works: The old overflow plate and linkage assembly are out of the tub without dropping parts into the drain.
If it doesn’t: If the assembly will not come out, rotate it slightly and try again while keeping steady support on the linkage.
If it works: The new assembly matches the old one closely enough to install and move freely inside the overflow tube.
If it doesn’t: If the new linkage is slightly adjustable, set it close to the old length before installation and fine-tune it during testing.
If it works: The new plate is mounted securely and the control moves without scraping or feeling jammed.
If it doesn’t: If the control feels stiff, remove the plate and reinstall the linkage with a straighter path so it can move freely.
If it works: The control now gives a clear open and closed position and the drain responds consistently.
If it doesn’t: If repeated small adjustments do not improve operation, compare the new assembly to the old one again to make sure you have the correct replacement style.
If it works: The tub holds water when closed, drains when opened, and the new overflow plate and linkage assembly stays secure during normal use.
If it doesn’t: If the tub still will not hold water, the stopper or drain seat may need additional repair beyond the overflow plate and linkage assembly.
Repair Riot may earn a commission from qualifying purchases, at no extra cost to you.
Usually no. You are not opening the supply lines for this repair. Just make sure the tub is not running while you work.
The most common causes are the wrong replacement style, linkage length that needs adjustment, or a separate problem at the stopper or drain seat.
Yes, if they are the correct size and not rusted or damaged. If the new kit includes matching screws in good condition, use those instead.
Match the original plate and the replacement instructions first. On many simple slotted overflow covers, the opening is positioned low or downward so overflow water can enter the drain, but lever-style plates need the control opening aligned so the linkage moves freely.
Start with the new linkage set as close as possible to the old linkage length. Test with a few inches of water, then adjust in small increments until the drain opens fully and holds water when closed.
Not always. Some tubs use a stopper controlled by the overflow linkage, while others use a separate stopper style at the drain opening. Match the repair to the hardware your tub actually has.
