Replace the bucket float switch only after the bucket slides in squarely, the float moves freely, and the unit still shows full-bucket or bucket-missing behavior with the connector seated.
Pull the bucket, wipe the rails and float pocket, then press the switch lever or actuator if you can reach it. Stop before ordering if the bucket guide is cracked, the connector is scorched, or the replacement plug and mounting tabs do not match the old switch.
Before you start: Check bucket seating, float travel, connector condition, and part fit before ordering. Stop if water reached wiring, the plug is scorched, or the bucket rail or switch bracket is cracked.
Do not order the switch just because the full-bucket light stays on. Seat the bucket, clean the float path, and press the switch lever if it is exposed. The next clue tells you whether to replace, clean, or stop.
This page fits when: The bucket sits flush, the float rises and drops freely, and the warning still says full or missing. A cracked switch body, loose lever, corroded terminal, or connector that changes the warning is a stronger clue.
Check something else when: Match the model number, plug key, terminal count, lever or float direction, mounting tab shape, and screw-hole position before ordering.
This page fits when: The bucket rocks on one rail, the float sticks from slime or mineral crust, or the actuator pad misses the switch. Those faults can look exactly like a bad bucket float switch.
Check something else when: Clean the rails and float pocket, reseat the bucket, and retest. Buy the switch only if the same warning remains.
This page fits when: The cabinet is dry, the cord is sound, and the switch bracket can hold the replacement flat. You can reach the connector without forcing panels or disturbing sealed tubing.
Check something else when: Stop if water reached wiring, insulation is brittle, the plug is scorched, or the bracket is cracked enough that the switch cannot sit square.

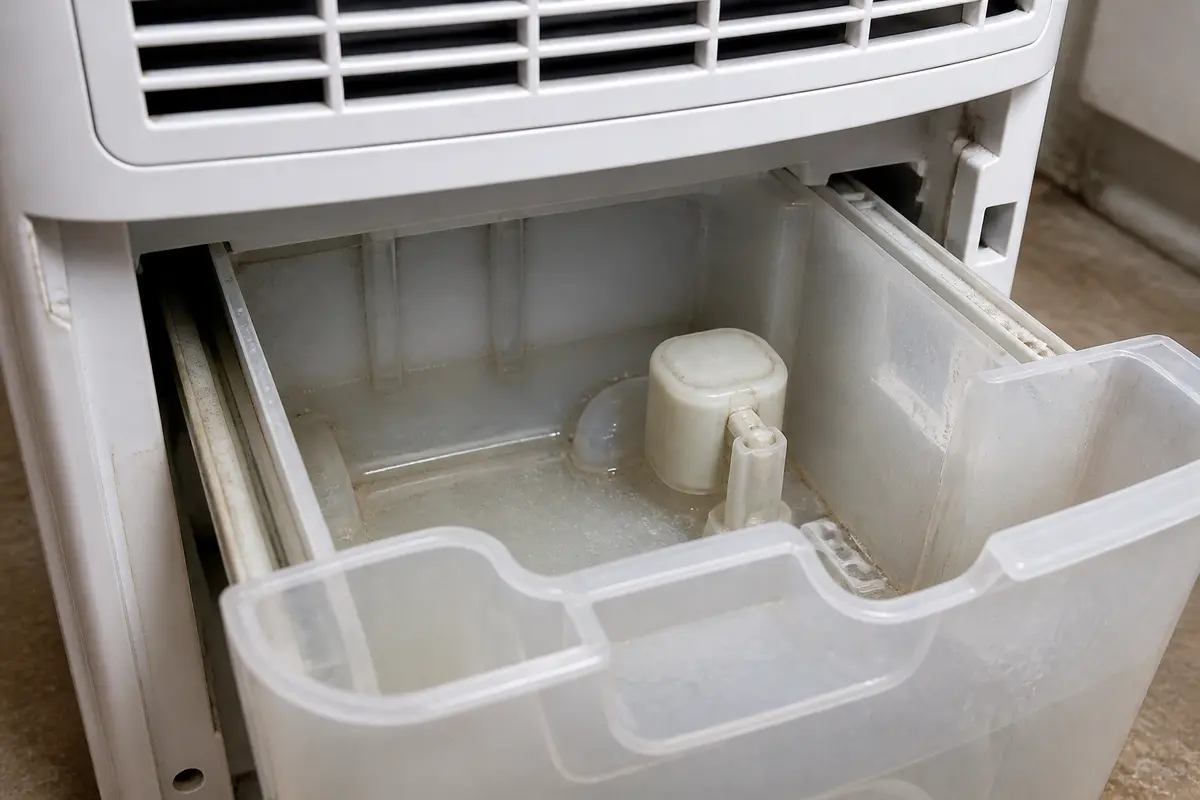

Use the bucket bay to separate a dirty float path from a failed switch. The bucket, float, actuator, and connector all need to line up before a new switch can fix the warning.
Use it for: To remove the bucket area cover or cabinet screws.
Shop Phillips screwdrivers
Use it for: To release tabs or gently lift switch clips after the screws are out and the panel is still held by plastic.
Shop small pry tools
Use it for: To grip a tight connector body and guide the new switch only after its plug and bracket match the old one.
Shop needle-nose pliers
Use it for: To protect your hands from sharp sheet metal edges inside the cabinet.
Shop work gloves
Use it for: To record wire routing and switch position before removal.
Shop phone tripods and holdersAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
If it works: The bucket seats squarely, the float moves freely, and the remaining symptom still points at the switch or connector.
If it doesn’t: If cleaning the float path or reseating the bucket clears the warning, leave the switch alone and run the unit long enough to make sure the warning stays gone.
If it works: The bucket float switch is visible and the cabinet is open only as far as the switch access requires.
If it doesn’t: If the switch is still hidden, look for one more shield or bracket and remove only the fasteners that clearly hold that piece.
If it works: The old switch is out, the bracket is intact, and the replacement matches the electrical connector and mounting pattern.
If it doesn’t: If the connector is tight, work it straight off in small movements. Twisting can loosen the terminal or split the switch housing.
If it works: The new switch is mounted securely, the connector is seated, and the float path is clear.
If it doesn’t: If the switch sits crooked, the lever misses the actuator, or the connector feels loose, remove it and recheck the switch match before reassembly.
If it works: The cabinet is closed, the bucket slides in squarely, and no wire or panel edge is rubbing the float path.
If it doesn’t: If the bucket scrapes, rocks, or will not seat fully, reopen the panel and fix the wire route or panel alignment before plugging the unit in.
If it works: The dehumidifier runs with the bucket seated, stops or alerts when the bucket is lifted, and resets when the bucket is returned.
If it doesn’t: If the same warning remains, recheck bucket alignment, connector seating, switch travel, and part fit. If those are right, the fault may be in the harness, control board, or another sensor.
Buy this switch only after the bucket is not stuck, the float drops freely, and pressing the lever still leaves the full bucket warning on. Match the model number, connector key, terminal count, lever direction, and mounting tabs.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
It tells the dehumidifier when the bucket or float is in the full, missing, or normal run position. If it fails, the unit may shut off with an empty seated bucket.
Clean the bucket rails and float pocket first. If the bucket sits squarely, the float rises and drops freely, and the same warning remains, the switch or connector moves up the list.
No. The switch helps prevent overflow and improper operation when the bucket is full, missing, or out of place. Replace the failed switch instead of bypassing it.
Usually not. Many portable units let you reach the switch from the bucket bay or a nearby cover. Open only the panel needed to see the switch and connector safely.
Recheck the bucket rails, float travel, connector seating, and switch fit. If those are right, the fault may be in the harness, control board, or another bucket sensor.
