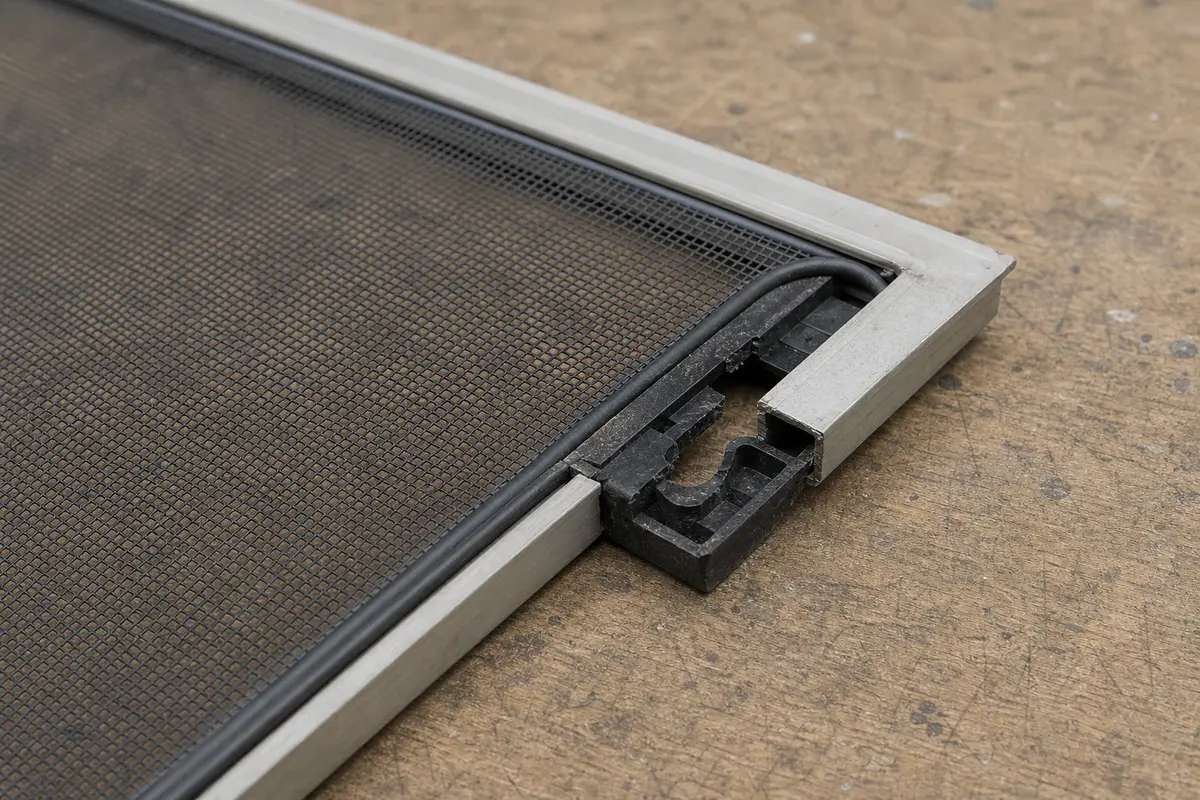

If one screen frame corner is cracked, loose, or missing, check the aluminum rails first. Replace the corner kit only when the frame channel is still straight enough to hold a matching insert.
Set the screen on a flat bench, compare the broken corner to the other corners, and measure the channel width and insert leg length. The repair works when the new corner seats fully and the frame goes back into the window without binding.
Before you start: Match the replacement corner to the screen frame channel width, leg length, profile, and orientation before ordering. Stop if the aluminum rails are twisted, split, or too loose to hold a new insert.
Before replacing a window screen frame corner kit, confirm the insert failed and the aluminum frame rails are still usable. Do not force a new corner into bent, split, or badly worn rails.
This page fits when: One corner insert is cracked, loose, missing, or pulled out while the rest of the screen frame is still straight and square enough to reuse.
Check something else when: If multiple rails are bent, twisted, split, or corroded, rebuilding the whole screen frame may be cleaner than replacing one corner.
This page fits when: You can match the corner shape, frame channel width, leg length, spline groove location, and left-right orientation before ordering.
Check something else when: If the old corner is missing, compare the other corners and measure the frame channel before buying a kit.
This page fits when: The screen is on a flat work surface, the mesh can loosen near the corner, and the frame still sits mostly flat.
Check something else when: Stop if the repaired screen will not stay in the window track or could fall from an upper-story opening.

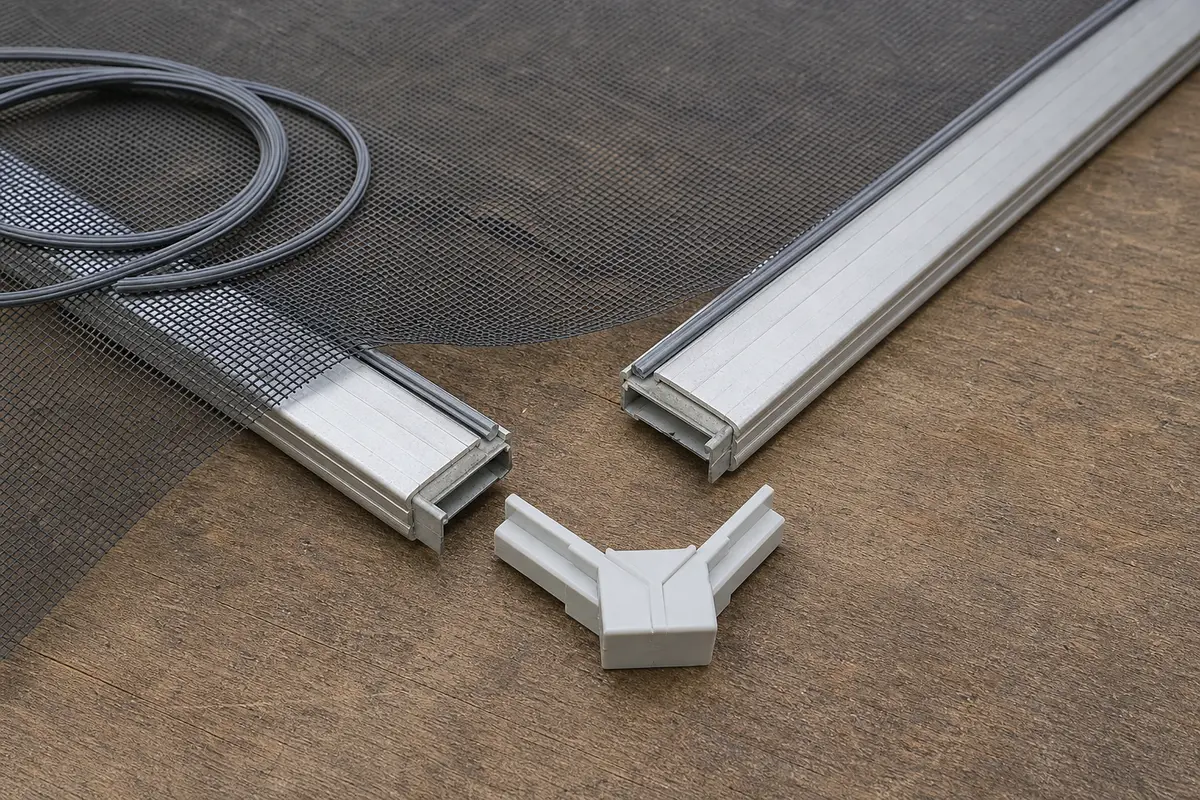

Use the damaged corner and dry-fit to confirm the replacement insert matches the frame channel. The rails should slide together square without forcing the mesh or spline.

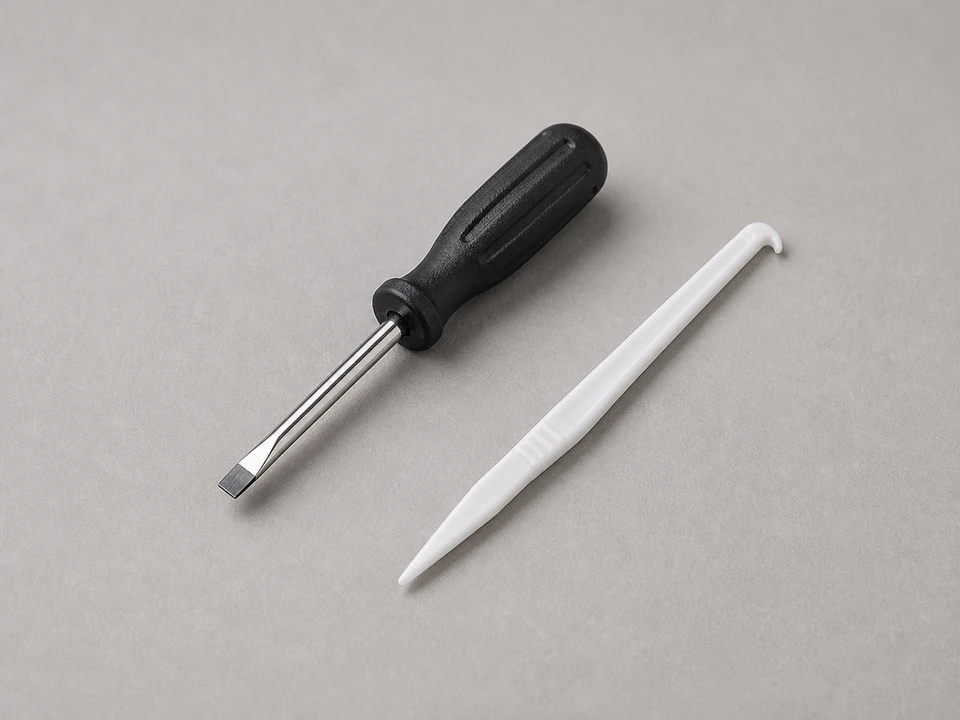

Use it for: To lift the screen spline and help separate the frame corner without bending the aluminum frame.
Shop flat screwdrivers and picks
Use it for: To pull old corner pieces, grip spline, and guide the frame back together.
Shop needle-nose pliers
Use it for: To compare the old corner and frame size so the replacement matches.
Shop tape measures

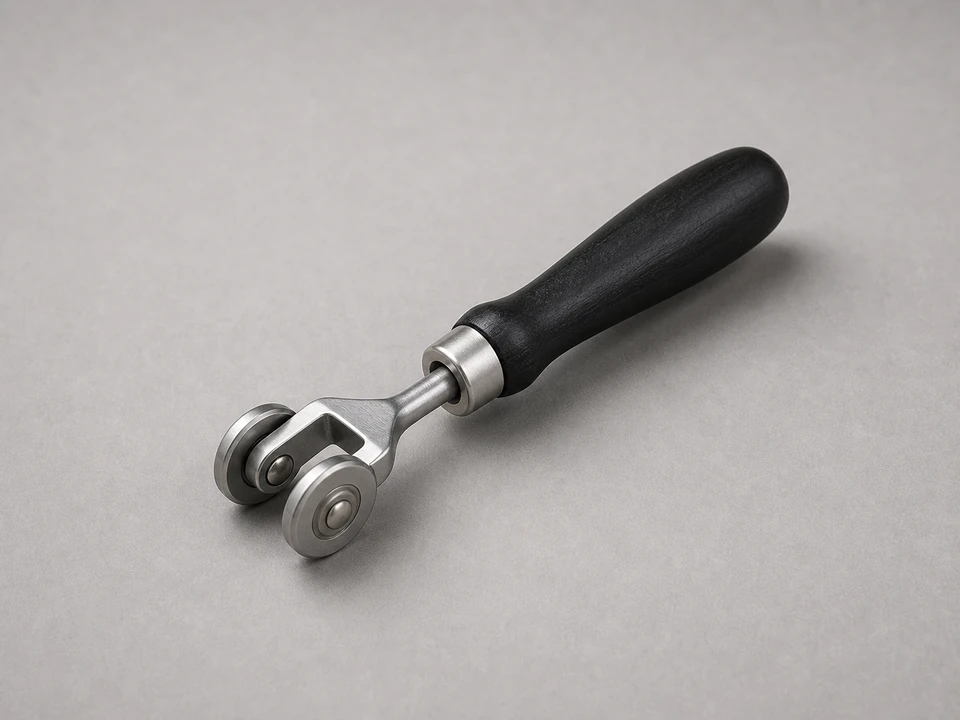

Use it for: To press the spline back in if you need to loosen or reinstall part of the screen mesh.
Shop screen rolling tools
Use it for: To protect your hands from sharp screen frame edges and old spline.
Shop work glovesAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
If it works: You found a damaged or loose corner piece while the rest of the frame is still usable.
If it doesn’t: If the frame rails are bent badly, torn, or out of square in multiple places, the whole screen frame may need replacement instead of just the corner kit.
If it works: The replacement corner matches the old insert legs and frame channel, and the damaged corner area is accessible.
If it doesn’t: If the new corner does not match the old one closely, pause and get the correct size and style before forcing it into the frame.
If it works: The old corner is out and both frame rail ends are clean and open.
If it doesn’t: If the corner is stuck, work it out a little at a time instead of twisting the frame. A small screwdriver can help loosen packed debris inside the channel.
If it works: The new corner is fully seated and the frame looks straight and square again.
If it doesn’t: If the rails will not seat fully, remove the corner and check for the wrong part, leftover debris, or a bent rail end.
If it works: The mesh is secure again and the repaired corner stays together under light tension.
If it doesn’t: If the mesh bunches up or the spline will not stay in, pull that short section back out and reset it with the frame held flat.
If it works: The screen fits the opening properly, the corner stays tight, and the screen holds up during normal window use.
If it doesn’t: If the screen still fits poorly or rattles, recheck the frame for a bent rail, the wrong corner size, or another loose corner that also needs attention.
Match the frame channel width, insert leg length, profile, and corner orientation before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Not usually. If only one corner is cracked and the others are still tight, you can replace just the damaged one. If several corners are brittle or loose, replacing all of them can save time later.
Match the new corner to the old one by shape, width, and how far the legs slide into the frame rails. A close visual match matters because screen frame corners are not all the same.
Sometimes yes. If you can separate the frame and swap the corner without stressing the mesh, you may only need to loosen a short section of spline near that corner. If the mesh is too tight, pull back a small section so the frame can move.
A slightly tweaked rail may still work, but a badly bent or twisted frame often will not stay square even with a new corner. In that case, replacing the full screen frame is usually the better repair.
The issue may be more than one corner, a bent frame rail, worn screen hardware, or damage in the window's screen track. Recheck the full frame before assuming the new corner failed.
