How to Replace a Sump Pump Float Switch

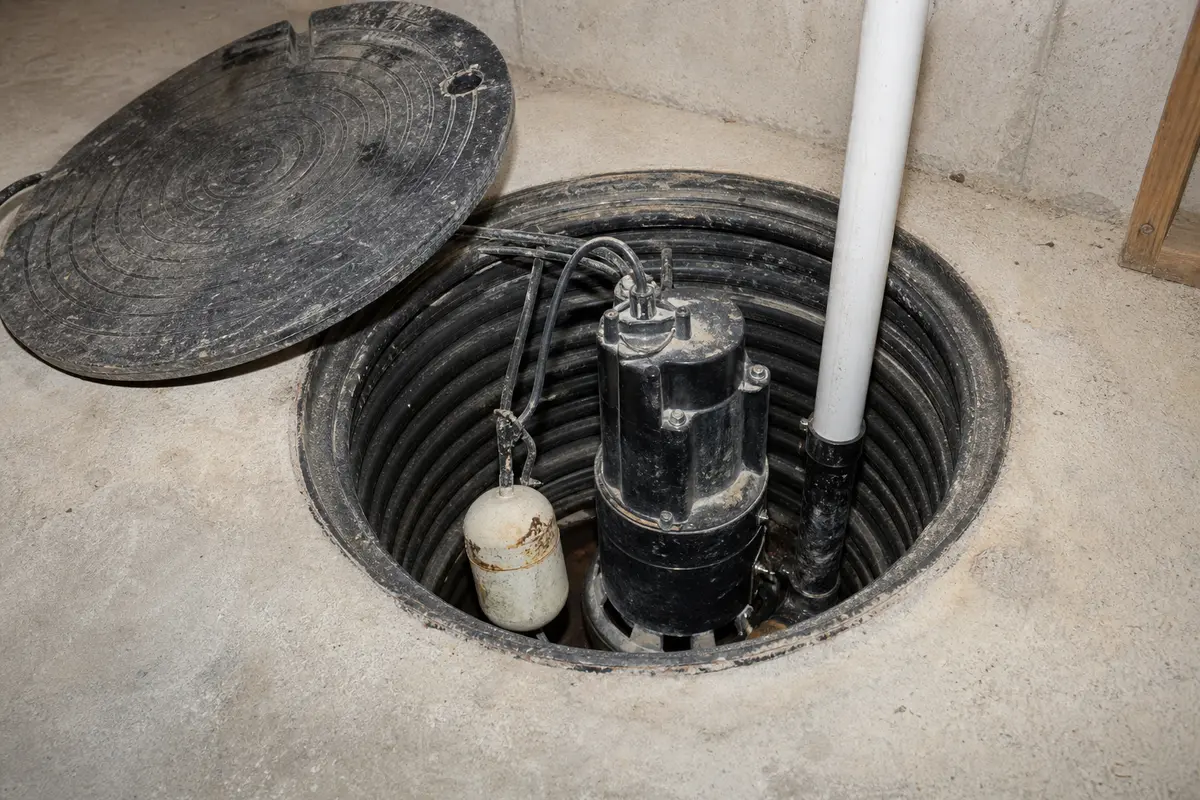

Step 1: Confirm the float switch is the problem

1. Unplug the sump pump before touching the float, cord, or water in the pit.
2. Look for simple causes first: a float wedged against the basin wall, debris holding it down, a tangled cord, or a check valve or discharge problem that is making the pump act strangely.
3. If your pump uses a piggyback-style float switch, plug the pump directly into the outlet for a brief test. If the pump runs normally when bypassing the float control, the switch is likely bad.
4. If the pump is hardwired or the switch is built into the pump housing, move the float by hand with the power disconnected and check for obvious sticking, damage, or a waterlogged float.

If it works: You have good reason to believe the sump pump float switch has failed or is no longer moving freely enough to control the pump.

If it doesn’t: If the pump will not run even when the switch is bypassed or manually lifted, the problem is likely the pump, power supply, or discharge system rather than the float switch.

Step 2: Lower the water and pull the pump where needed

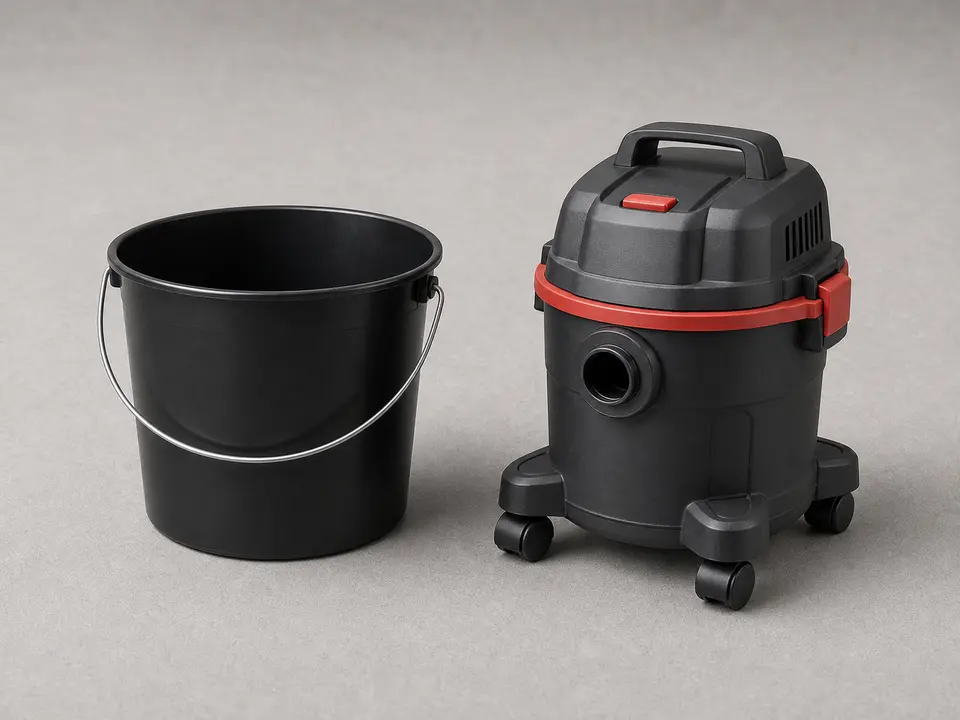

1. Use a bucket or wet/dry vacuum to lower the water enough to see the float and cord routing clearly.
2. Disconnect the pump from power and remove the pump from the pit if you cannot reach the switch comfortably in place.
3. Set the pump on a stable surface where dirty water can drain without making a slipping hazard.
4. Wipe off mud and sludge around the switch area so the new float will not catch on buildup.

Step 3: Remove the old float switch

1. Trace the old float switch cord from the float to its plug, piggyback connection, or mounting point on the pump.
2. Take a quick photo before removal so you can match the cord path and tether length.

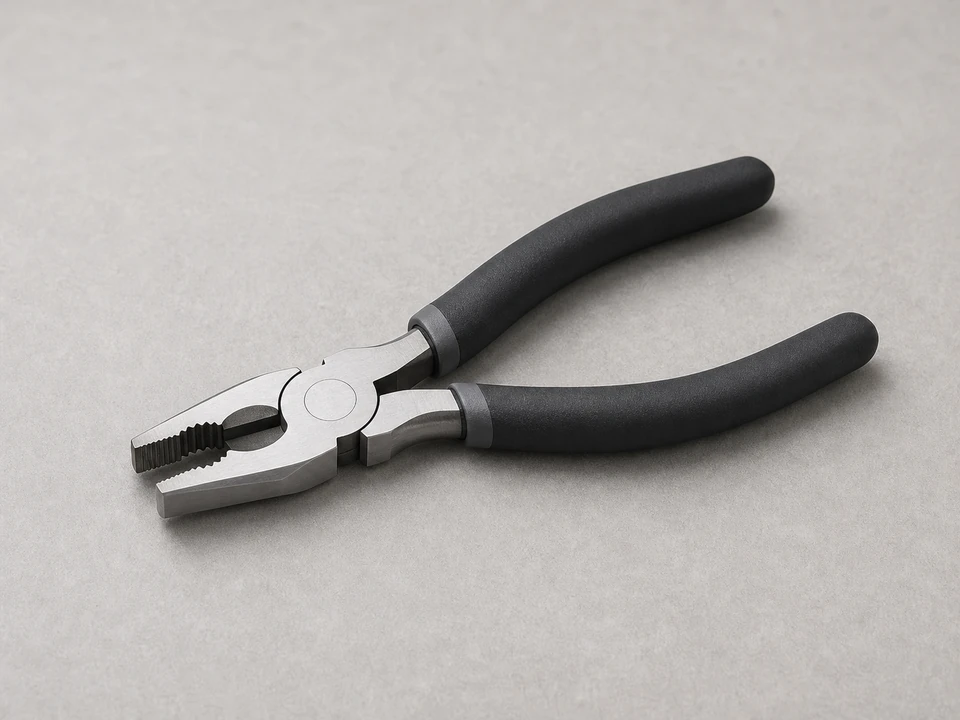

3. Cut any zip ties or remove clips and screws holding the old switch in place.
4. If it is a piggyback switch, unplug the pump from the switch and remove the switch from the outlet. If it is mounted to the pump, remove the switch carefully without damaging the pump housing or cord strain relief.

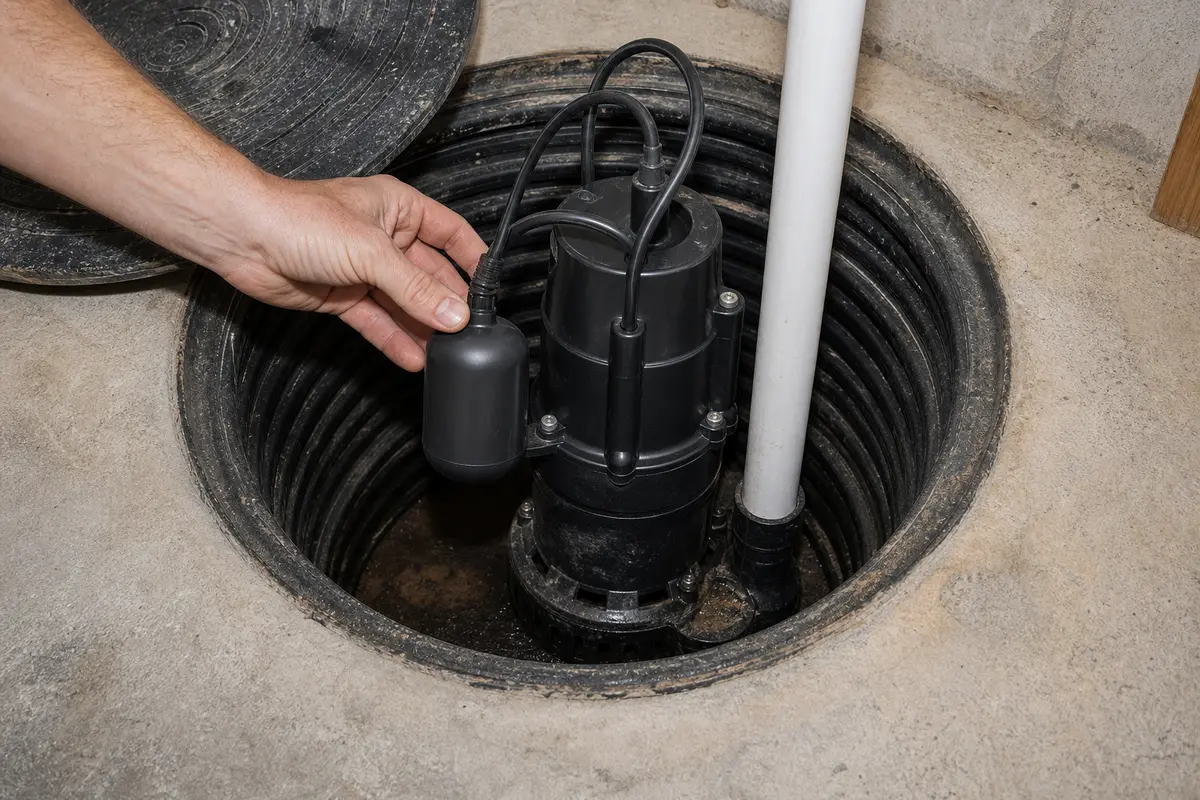

Step 4: Install the new float switch and set the cord length

1. Compare the new switch to the old one and confirm the style, voltage compatibility, and connection method match before installing it.
2. Mount or clip the new switch in the same general location as the old one, keeping the float clear of the basin wall, pump body, and discharge pipe.

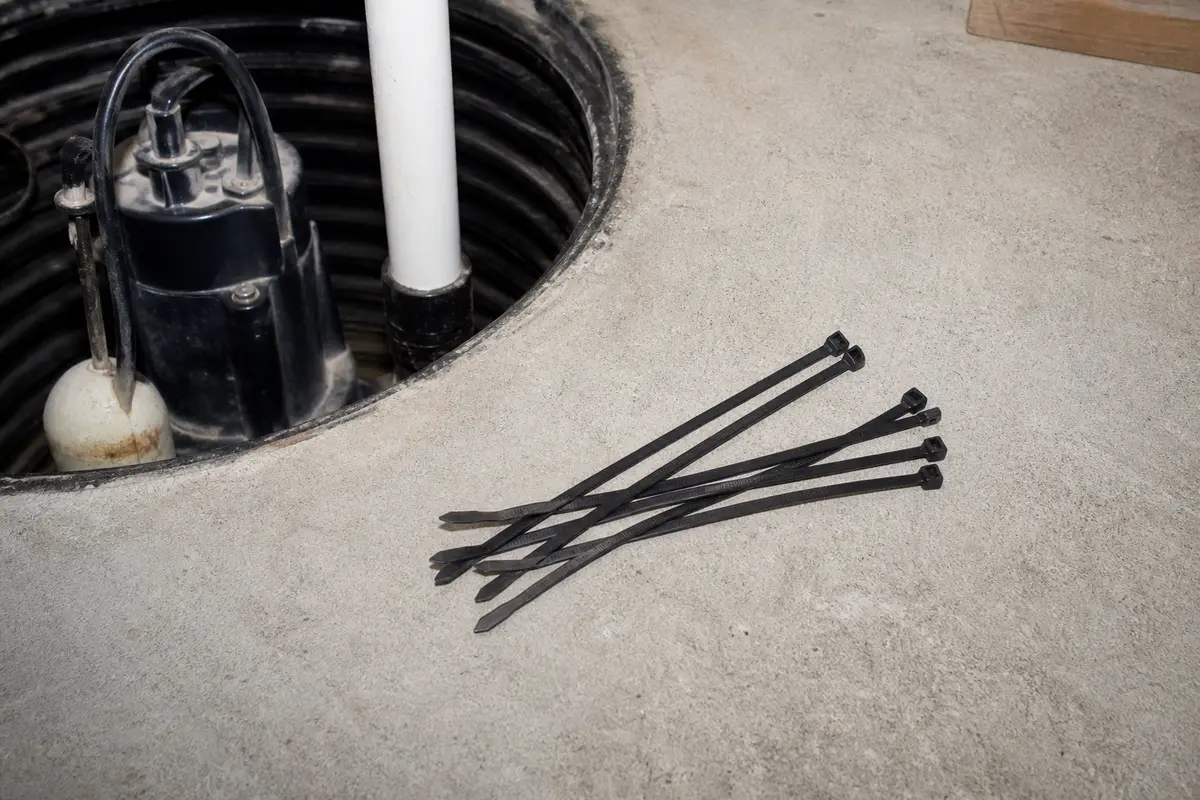

3. Route the cord neatly and secure it with zip ties so it cannot fall into the impeller area or wrap around the float.
4. Set the tether or cord length to allow enough float travel to turn the pump on and off without letting the float hit nearby parts.

Step 5: Reconnect the pump and test the switch by hand

1. Reconnect the pump to the new switch if it uses a piggyback plug, then plug the switch into the outlet.
2. If you removed the pump, place it back in the pit in a stable position with the float facing open space.
3. Restore power and lift the float by hand to confirm the pump starts, then lower it to confirm the pump shuts off.
4. Listen for smooth startup and shutdown without chattering, humming without pumping, or repeated short cycling.

If it doesn’t: If the pump runs backward, hums, or does not move water, the issue is beyond the float switch and the pump or discharge path needs more diagnosis.

Step 6: Run a real water test and make sure the repair holds

1. Fill the pit with clean water slowly until the float rises enough to start the pump on its own.
2. Watch one full cycle: the pump should turn on, lower the water, and shut off without the float sticking or the pump continuing to run.
3. Check that the float does not snag on the wall, discharge pipe, power cord, or pump handle as the water level changes.
4. Test a second cycle if possible so you know the switch repeats the same way under normal use.

If it works: The sump pump starts and stops on its own through full water cycles, and the float moves freely every time.

If it doesn’t: If the pump still runs continuously, fails to start, or the float catches during the water test, recheck the cord routing and tether length or move on to diagnosing the pump and discharge system.
