Trips with controls off?
Leave the breaker off. This is not a burner-part shopping problem.
Cooktop electrical trip diagnosis
JennAir Cooktop Trips Breaker? Check the Trip Pattern First
If a JennAir cooktop trips the breaker, start with the trip pattern before buying parts. A trip with all controls off is a stop point; one burner tripping points to that burner circuit.
The useful split is moisture, one-burner element or switch fault, damaged wiring, shared control failure, or a house-side circuit issue.
One careful pattern check beats random part replacement.
Don’t start with: Do not reset the breaker repeatedly or use the cooktop after a trip with all controls off.
Trips with all controls offLeave the breaker off and move to electrician or appliance service rather than buying burner parts.
Trips on one burner onlyRecord the burner location and match the element or switch path by full model number.
Do this first
- Turn the cooktop controls off and let the surface cool.
- Leave the breaker off if it trips with all controls off.
- Do not use the cooktop again if you smell hot insulation or see heat damage.
- Call an electrician or appliance tech for panel, junction-box, or supply-circuit diagnosis.
Last reviewed: 2026-06-21
60-second breaker sorter
Started after cleaning?
Dry the cooktop fully and inspect for liquid before trying again.
Only one burner causes it?
That supports a targeted burner, switch, igniter, or local wiring diagnosis.
Trips after heating for a while?
Stop use and inspect for heat-damaged components with power off.
Where the breaker clue shows up
Use the cooktop surface, control behavior, and trip notes. Timing matters more than guessing which part looks likely.
Before you buy anything
Record the full model number, fuel type, burner location, and exact trip timing. Do not order elements, switches, or boards for a breaker that trips with every control off.
What is probably happening
A JennAir cooktop that trips the breaker is usually reacting to moisture, a shorted burner circuit, a failing switch, damaged wiring, or a house-side circuit problem.
- A good clue is exactly when the breaker trips: immediately, after one burner, after heating, or after cleaning.
- A trip with all controls off is more serious than one burner tripping only when selected.
- In practice, repeated breaker trips should not be used as a diagnostic tool.
- Watch for a trip that follows one knob or burner; that usually makes the diagnosis more targeted.
- Electric and induction cooktops often point toward element, switch, board, or terminal faults.
- Gas cooktops can still trip from igniter switches, spark modules, moisture, or wiring.
What not to do first
Do not reset the breaker over and over to see what happens. One careful pattern check is useful; repeated trips can worsen arcing, heat, and wiring damage.
- Do not replace a surface element before you know whether one burner causes the trip.
- Do not assume the breaker is nuisance-tripping if the cooktop or wiring smells hot.
- Do not open a junction box or electrical panel as part of DIY cooktop diagnosis.
- Do not use the cooktop again after a trip with all controls off.
- Do not dry the control area with heat guns or sprays.

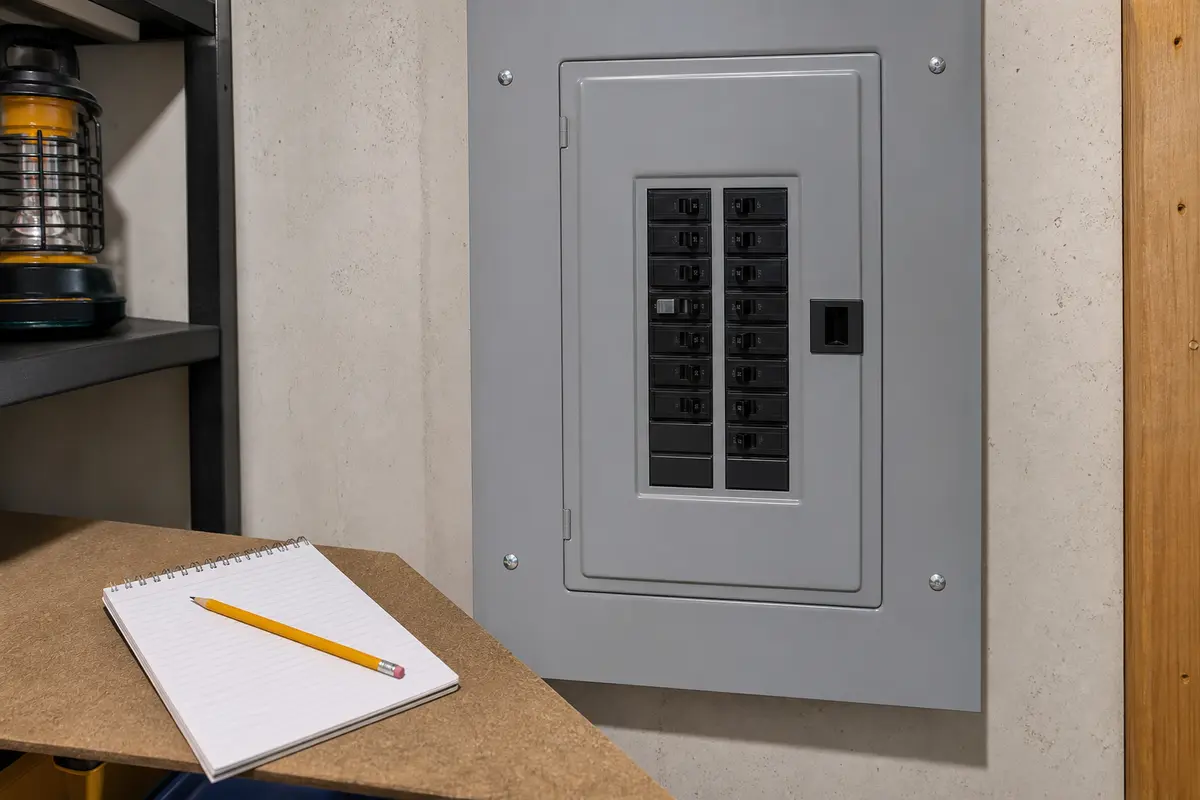

Breaker trip result map
The timing of the trip is the safest first clue. Stop after the pattern is clear instead of cycling the breaker repeatedly.
| Trip pattern | What it usually means | Best next move |
|---|---|---|
| Trips with all controls off | Hard fault, wiring, terminal, or circuit problem | Leave breaker off and call an electrician or appliance tech. |
| Trips after cleaning or boilover | Moisture in controls, igniter area, or terminal space | Let it dry fully and inspect for liquid before reuse. |
| Trips when one burner is selected | Burner element, infinite switch, igniter, or local wiring fault | Record burner location and match parts by model. |
| Trips after several minutes of heating | Heat-related element, switch, board, or connection failure | Stop use and inspect accessible damage with power off. |
| Breaker holds but GFCI trips | Leakage or ground-fault path | Do not defeat protection; diagnose the cooktop and circuit. |
Fit notes before ordering
JennAir cooktop part fit depends on fuel type, burner size, control type, downdraft layout, and model revision. The breaker pattern tells you which parts are even candidates.
- Use the full model number, not just the JennAir badge.
- Match electric, induction, or gas components to the exact burner location.
- Do not buy elements, switches, or boards for a trip that happens with all controls off.
Tools You May Need

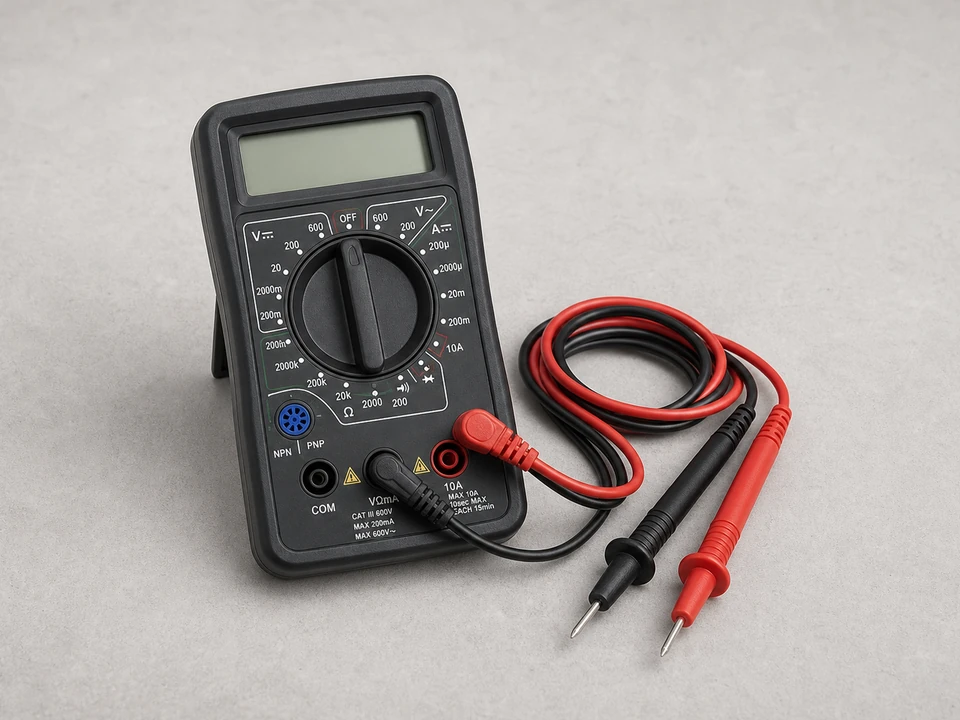

Digital multimeter
Helps when: A qualified person needs meter checks after the cooktop is safely disconnected and the fault is isolated.
Skip it when: You would need to measure energized wiring, open a panel, or guess which terminals to touch.
Compare digital multimeters on Amazon

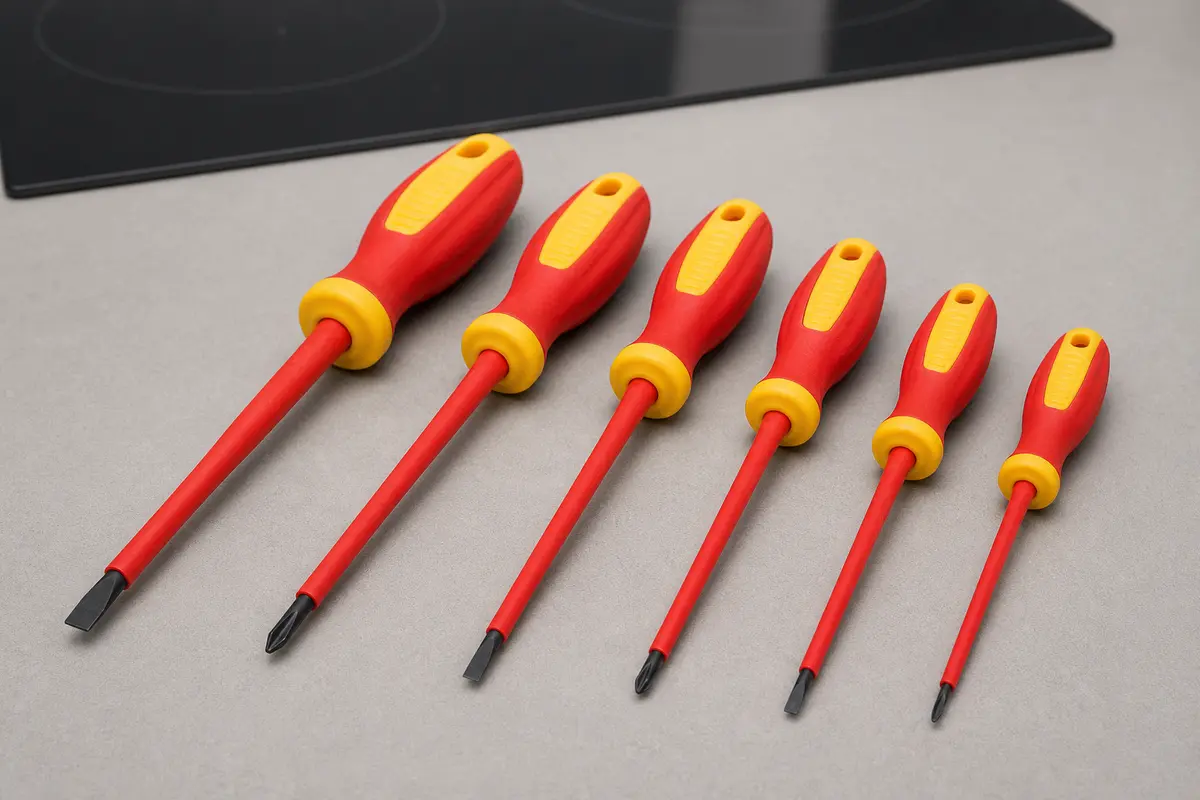

Insulated screwdriver set
Helps when: Approved access covers or trim screws need removal after the correct breaker is off.
Skip it when: Access requires opening a junction box, removing sealed glass, or working near uncertain wiring.
Compare insulated screwdriver sets on AmazonAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Replacement Parts

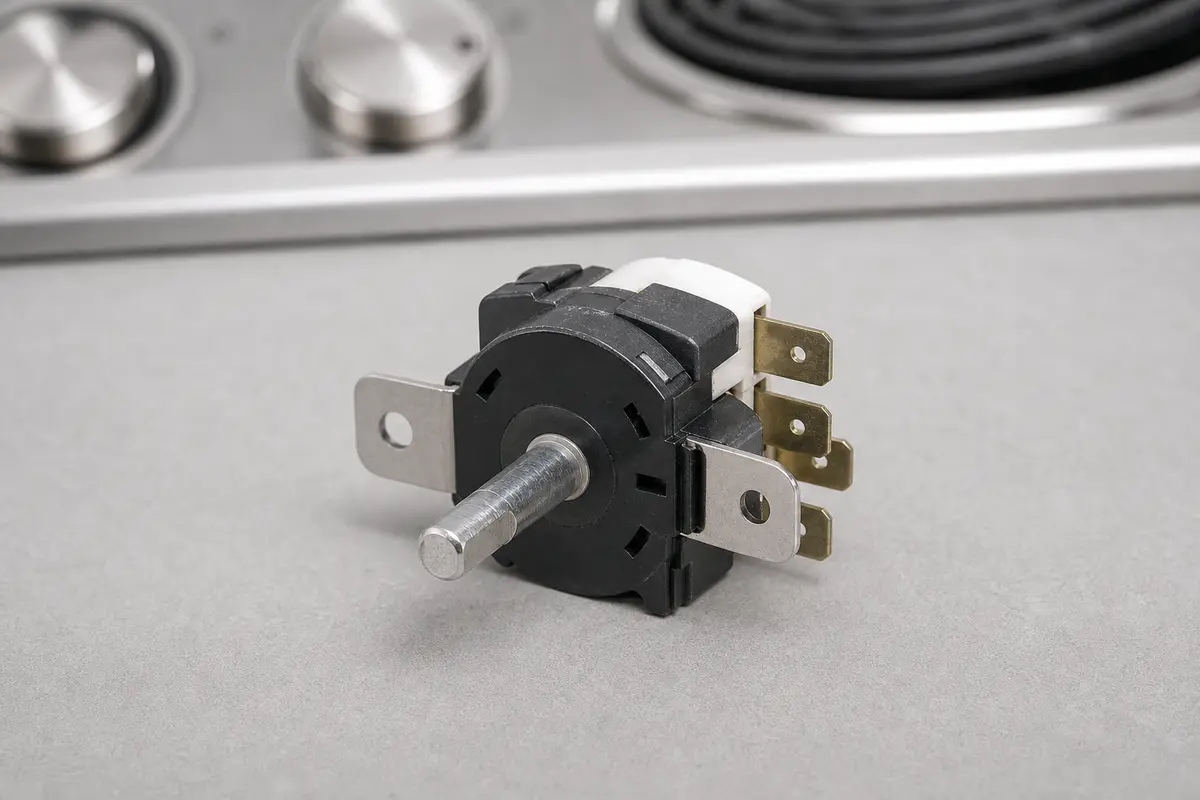

Cooktop infinite switch
Helps when: One electric burner trips the breaker when its control is turned, and the model diagram matches the switch.
Skip it when: The breaker trips with all controls off or the cooktop uses induction controls instead of an infinite switch.
Compare cooktop infinite switches on Amazon

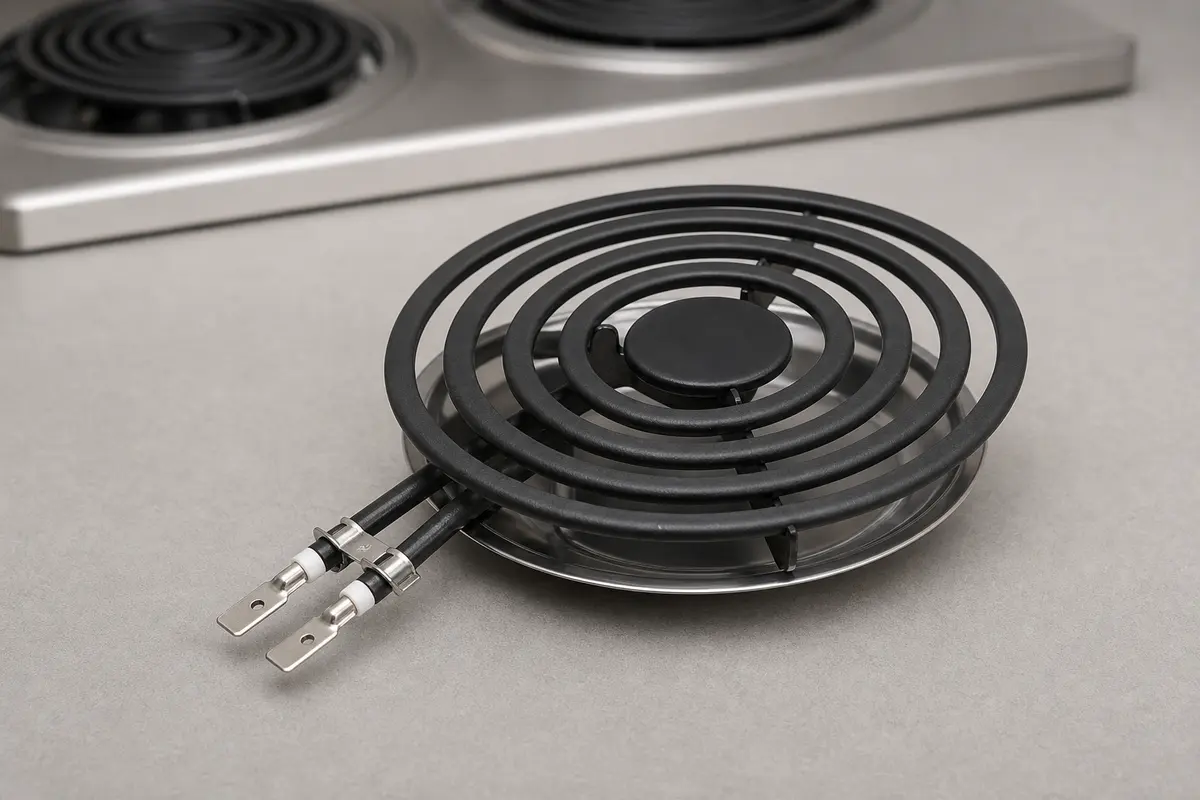

Cooktop surface element
Helps when: The same burner trips after heating and inspection supports a damaged element or element circuit.
Skip it when: The cooktop is wet, multiple burners trip, or the breaker trips before any burner is selected.
Compare cooktop surface elements on AmazonAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
FAQ
Why does my JennAir cooktop trip the breaker?
The common causes are moisture, one-burner element or switch faults, damaged wiring, a shared control fault, or a house-side circuit issue.
Is it safe to reset the breaker and try again?
One careful pattern check may be useful, but repeated trips are not safe. Leave the breaker off if it trips with controls off.
Why did it start after cleaning?
Moisture can reach controls, igniters, terminals, or seams and create a leakage path until fully dry.
Can one burner trip the breaker?
Yes. A failing element, switch, igniter path, or local wire can trip protection when that burner is selected.
Should I replace the breaker?
Do not start there unless an electrician diagnoses the circuit. A tripping breaker may be doing its job.
Can a gas JennAir cooktop trip a breaker?
Yes. Gas models still use electrical ignition parts, switches, modules, lights, fans, or wiring that can fault.
What part should I buy first?
Buy nothing until the trip pattern is isolated by burner, timing, moisture, and model. A trip with controls off is not a parts-order clue.
When should I call an electrician?
Call when the breaker trips with controls off, wiring smells hot, the panel or junction box is involved, or a targeted repair does not hold.
How this page was built
Repair Riot built this page around visible symptoms, safe homeowner checks, model-tag part matching, and stop points where electrical, sealed-system, gas, or HVAC work should move to a qualified pro.
- ESFI home electrical safety — background on household electrical hazards and why tripping protection should be respected.
- NFPA cooking safety — cooking-equipment safety context when electrical or heat symptoms appear.
